| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

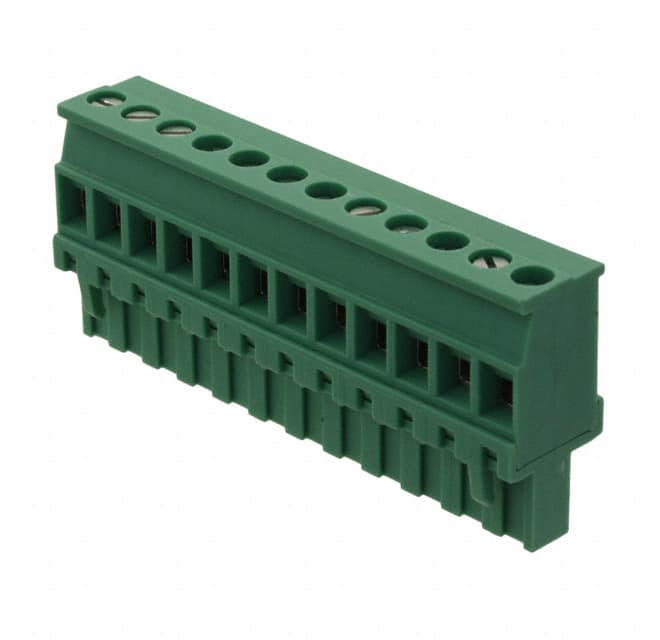

The Phoenix Contact 1792346 is a 12 position terminal block plug designed for use in wire-to-board or wire-to-wire connections. It features female sockets and a screw connection with rising cage clamp for secure wire termination. The plug accepts wire sizes from 0.2 to 2.5 mm² and has a plug wire entry at 90° angle. The contact mating finish is tin, and the housing is green. It includes retention latches on the wire side for added security.
The plug is rated for 15 A current and 300 V voltage, suitable for many industrial and commercial applications. The 5.08 mm pitch allows for compact spacing while maintaining sufficient clearance. The mounting type is free hanging (in-line), making it easy to integrate into cable assemblies.
The termination style is screw - rising cage clamp, which provides a reliable and vibration-resistant connection. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
12 positions.
5.08 mm.
15 A.
300 V.
Free hanging (in-line).
0.2 to 2.5 mm².
Screw - rising cage clamp.
