1792304 Phoenix Contact 1792304 is an 8-position terminal block plug with 5.08mm pitch, featuring screw rising cage clamp termination and free hanging mounting. It is rated for 15A and 300V.
Mfr Part #:

1792304

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1792304 is an 8-position terminal block plug with 5.08mm pitch, featuring screw rising cage clamp termination and free hanging mounting. It is rated for 15A and 300V.
✓ Total Stock: 52 pcs

1792304 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
52 pcs
On Request
52 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1792304 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1792304 Description

Short technical summary and product information.

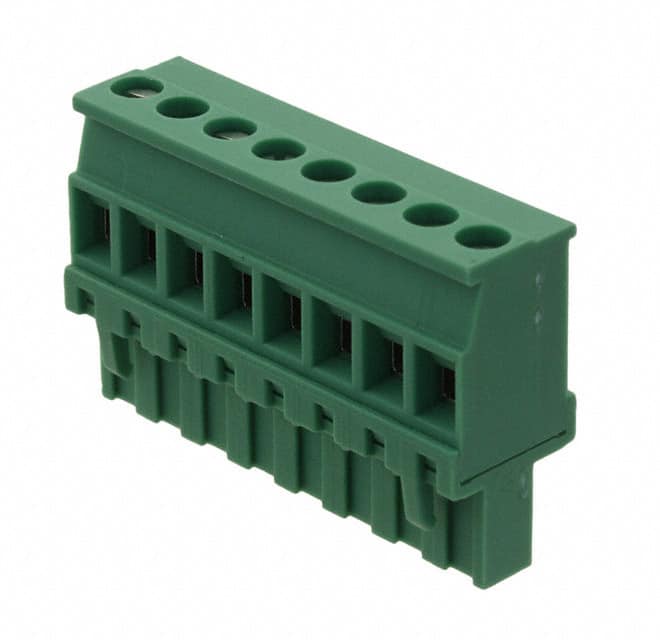

The Phoenix Contact 1792304 is a plug connector with female sockets, designed for free hanging (in-line) mounting. It features 8 positions in a single level with a 5.08mm pitch. The termination style is screw with a rising cage clamp, accommodating wire gauges from 0.2 to 2.5 mm². The plug has a 90° wire entry angle, and retention latches on the wire side provide secure connection. Electrically, it is rated for 15A current and 300V voltage, with tin contact mating finish. The housing is green.



This connector is part of Phoenix Contact's terminal block plug series, commonly used in industrial control panels and automation systems. The 5.08mm pitch is a standard size for many applications. The free hanging mounting allows flexible installation without requiring a fixed mounting surface.

1792304 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1792304 Terminal Block Plug, 8 Positions, 5.08mm Pitch
Subcategory: Terminal Block Plugs

1792304 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1792304 Features

  • 8 positions in a single level.
  • 5.08mm pitch standard spacing.
  • Screw rising cage clamp termination.
  • Rated 15A and 300V.
  • Free hanging in-line mounting.

1792304 Applications

  • Connects wires in terminal block systems.
  • Provides 8 connection points in one level.
  • Suitable for 15A and 300V circuits.
  • Compatible with 5.08mm pitch headers.
  • Free hanging installation for flexible wiring.

1792304 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1792304 have?

It has 8 positions in a single level.

What is the pitch of the 1792304 terminal block plug?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the Phoenix Contact 1792304?

The current rating is 15 A.

What is the voltage rating of the 1792304?

The voltage rating is 300 V.

What is the mounting type for this connector?

Free hanging (in-line) mounting.

What wire gauge range is compatible with the 1792304?

It accommodates wire gauges from 0.2 to 2.5 mm².

What type of termination does the 1792304 use?

Screw - rising cage clamp termination.
