| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

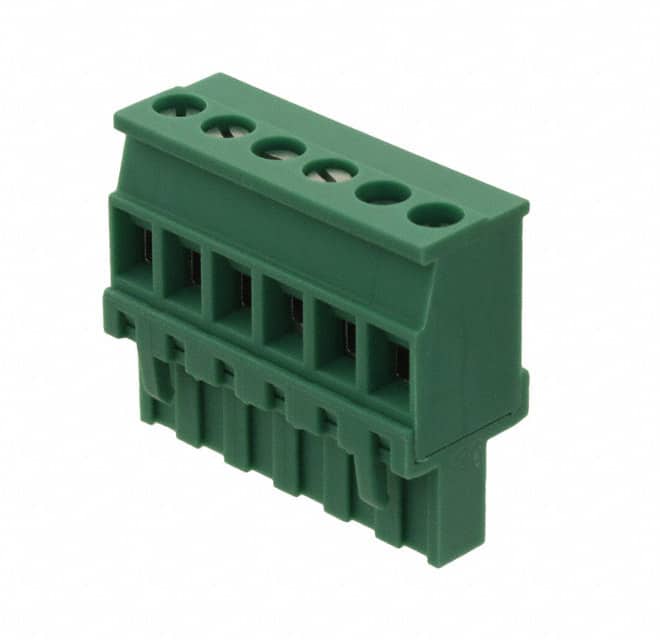

The Phoenix Contact 1792281 is a 6-position terminal block plug designed for reliable wire-to-board connections. It features a 5.08mm pitch and accepts wire gauges from 0.2 to 2.5mm². The plug uses a screw rising cage clamp termination for secure and vibration-resistant connections.
Rated for 15A and 300V, this plug is suitable for industrial control and automation applications. The free hanging (in-line) mounting type allows flexible installation without requiring a fixed panel cutout. The 90° wire entry angle simplifies wiring in tight spaces.
The green housing includes retention latches on the wire side to prevent accidental disconnection. Contact mating finish is tin, providing good conductivity and corrosion resistance. This component is part of Phoenix Contact's extensive terminal block family, known for quality and reliability.
6 positions in a single level.
5.08mm (0.200 inches).
15A and 300V.
Screw - Rising Cage Clamp.
Free Hanging (In-Line).
0.2 to 2.5mm².
Green.
