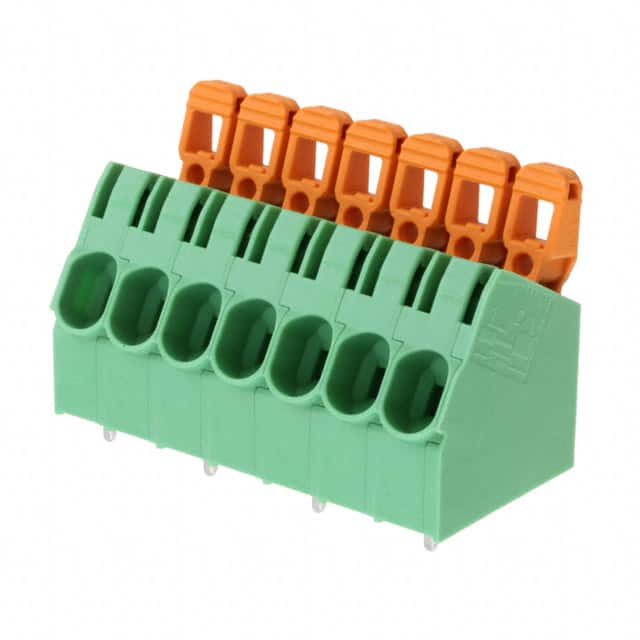

1792274 The Phoenix Contact PLA 5/7-7,5-ZF (1792274) is a 7-position PCB terminal block with 7.5mm pitch, rated for 41A and 1000V, featuring a screwless spring-cage connection.
Mfr Part #:

1792274

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact PLA 5/7-7,5-ZF (1792274) is a 7-position PCB terminal block with 7.5mm pitch, rated for 41A and 1000V, featuring a screwless spring-cage connection.
✓ Total Stock: 24 pcs

1792274 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1792274 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connection Method
Current
Features
Hole Diameter
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1792274 Description

Short technical summary and product information.

The Phoenix Contact PLA 5/7-7,5-ZF (1792274) is a 7-position PCB terminal block with a 7.5mm pitch. It utilizes a screwless spring-cage connection for fast and reliable wire termination, and is mounted via through-hole soldering.



Electrically, it is rated for a nominal current of 41A and a voltage of 1000V, with a rated surge voltage of 8kV. It accepts wire sizes from 10 to 24 AWG, or conductor cross sections from 0.2 to 6 mm² (solid or stranded). The terminal block is lever actuated for easy wire insertion.



Mechanically, the part features a green insulating body made of PA (polyamide) with a V0 flammability rating. The solder pins are tin-plated with dimensions 1.2 x 1.5 mm, and require a 2 mm PCB hole diameter. The stripping length is 12 mm.



Packaged in a standard quantity of 1 piece, this terminal block is suitable for a variety of wire-to-board applications in industrial control, lighting, and building automation.

1792274 Quick Information

Product Type: PCB Terminal Block
Series: PLA 5
Canonical Name: Phoenix Contact PLA 5/7-7,5-ZF 7-Position 7.5mm Pitch PCB Terminal Block with Spring-Cage Connection
Subcategory: Wire to Board

1792274 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1792274 Features

  • 7 positions with 7.5mm pitch spacing.
  • Rated for 41A and 1000V operation.
  • Screwless spring-cage connection for quick wiring.
  • Accepts 10-24 AWG solid or stranded wire.
  • Lever actuated for easy wire insertion.

1792274 Applications

  • Ideal for power distribution in industrial control panels.
  • Suitable for PCB mounted terminal applications.
  • Used in lighting systems and building automation.
  • Can be applied in HVAC equipment and machinery.
  • Perfect for wire-to-board connections requiring high current.

1792274 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

The terminal block has 7 positions.

What is the pitch?

7.5 mm.

What is the current rating?

41 A.

What is the voltage rating?

1000 V.

What is the mounting type?

Through Hole.

What wire sizes are compatible?

10-24 AWG, or 0.2 to 6 mm² solid/stranded.

What is the termination style?

Screwless spring-cage (tension clamp).
