1792252 Phoenix Contact 1792252 is a 3-position plug with female sockets, 5.08mm pitch, rated 300V and 15A, featuring screw rising cage clamp termination.
Mfr Part #:

1792252

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1792252 is a 3-position plug with female sockets, 5.08mm pitch, rated 300V and 15A, featuring screw rising cage clamp termination.
✓ Total Stock: 60 pcs

1792252 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 3 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1792252 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1792252 Description

Short technical summary and product information.

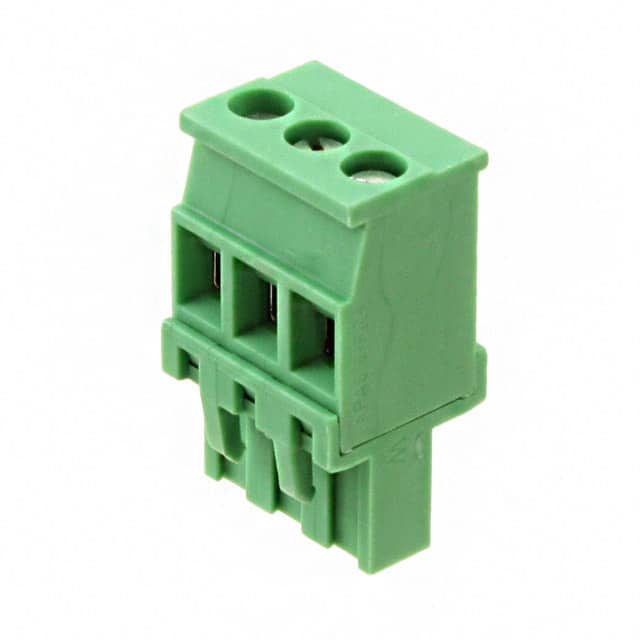

The Phoenix Contact 1792252 is a 3-position terminal block plug with female socket contacts. It features a 5.08mm (0.200") pitch and is designed for free hanging (in-line) mounting. The plug uses a screw rising cage clamp termination style, accommodating wire gauges from 0.2 to 2.5mm². It is rated for 300V and 15A, with tin-plated contact mating surfaces. The green housing includes retention latches on the wire side for secure connection. This component is suitable for industrial control cabinet wiring and field installation applications.

1792252 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1792252 3-Position 5.08mm Pitch Plug, Female Sockets
Subcategory: Terminal Block Plug

1792252 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1792252 Features

  • 3-position plug with 5.08mm pitch.
  • Screw rising cage clamp termination.
  • Rated for 300V and 15A.
  • Accepts 0.2-2.5mm² wire gauge.
  • Retention latches on wire side.

1792252 Applications

  • Industrial control cabinet wiring.
  • Field installation terminal blocks.
  • Power distribution connections.
  • Sensor and actuator wiring.

1792252 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1792252 have?

It has 3 positions.

What is the pitch of this terminal block plug?

The pitch is 5.08mm (0.200").

What is the current and voltage rating?

Rated for 15A and 300V.

What type of termination does it use?

Screw rising cage clamp termination.

What wire gauge is compatible?

Accepts 0.2 to 2.5mm² wire.

What is the mounting type?

Free hanging (in-line) mounting.
