| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

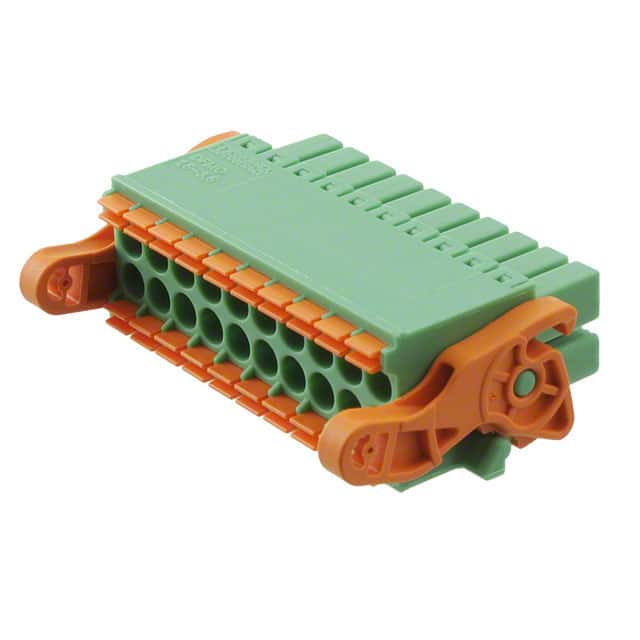

The Phoenix Contact 1790564 is a 20-position terminal block plug designed for reliable wire-to-board connections. It features a 3.50mm pitch and two levels with 10 positions per level, allowing compact wiring in space-constrained applications. The plug uses a screwless push-in spring termination style, enabling fast and tool-free wire installation for solid or ferruled conductors from 0.2 to 1.5mm².
Rated at 8A and 150V, this plug is suitable for low-power signal and control circuits. The contact mating finish is tin, providing good conductivity and corrosion resistance. The green housing includes ejector latches for secure mating and easy disconnection from the header.
The free hanging (in-line) mounting type allows flexible placement without requiring a fixed panel or PCB mount. The 180° wire entry direction simplifies wiring in straight-through cable assemblies. This component is commonly used in industrial control systems, building automation, and instrumentation applications where reliable and serviceable wire connections are needed.
20 positions arranged in two levels of 10 positions per level.
3.50mm (0.138 inches).
8A and 150V.
Free hanging (in-line) mounting.
Screwless push-in spring termination.
0.2 to 1.5mm².
Green.
