| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions Per Level | |
| Positions Per Level | |
| Termination Style | |
| Total Number of Positions | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

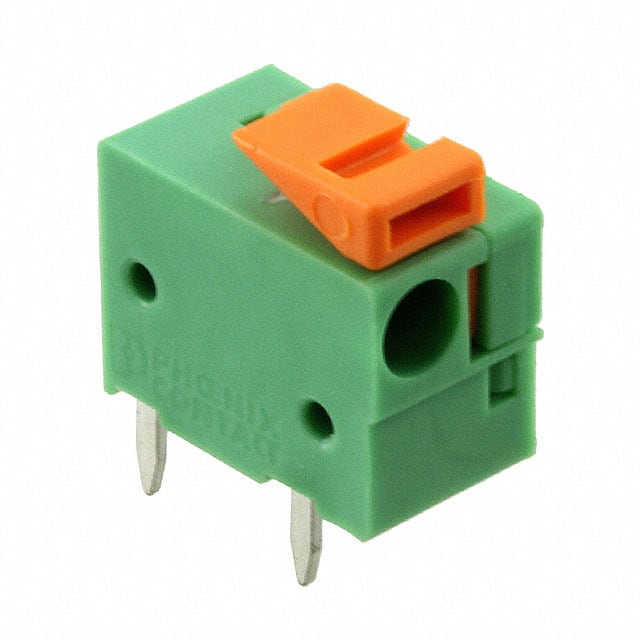

The Phoenix Contact 1790513 is a single position wire to board terminal block designed for PCB mounting. It provides a reliable and compact connection point for a single wire in a variety of industrial and electronic applications.
This terminal block is rated for 10 A and 300 V, supporting wire gauges from 16 to 22 AWG. It features a screwless spring cage termination with a tension clamp mechanism, enabling fast and tool-free wire installation. The lever actuated design simplifies insertion and removal of wires.
The component is through hole mounted and has a horizontal mating orientation (side entry) relative to the PCB. Its green housing includes side interlocking features for secure multi-position assembly when used with additional blocks. The single position design allows for modular expansion.
The 1790513 is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of 1 (unlimited). It is manufactured by Phoenix Contact.
1 position.
10 A.
300 V.
Through hole.
16-22 AWG.
Screwless - Spring Cage, Tension Clamp.
Horizontal with Board (side entry).
