| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

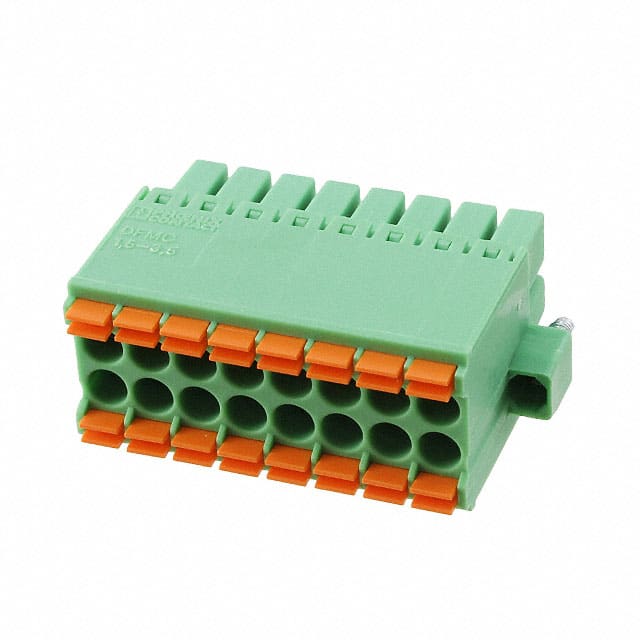

This product is a plug component from the Phoenix Contact DFMC 1,5/..-STF series, designed for use with matching headers in printed-circuit board connector systems.
It features a 2-level arrangement providing 16 total positions (8 per level) with a 3.50mm pitch. Connection is made via a screwless push-in spring termination, supporting solid and stranded conductors from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG). Electrical ratings include a nominal current of 8 A and a voltage rating of 150 V (also specified as 160 V rated voltage III/2 per datasheet).
Mechanically, the plug is free-hanging (in-line) with 180° wire entry, a mating flange, and a green PA housing with UL 94 V0 flammability rating. Contact surface is tin.
The 1790357 has 16 positions arranged in 2 levels of 8 positions each.
The pitch is 3.50 mm (0.138 inches).
The current rating is 8 A. The voltage rating is 150 V (UL/CUL Group B) and 160 V rated voltage (III/2) per the datasheet.
It accepts solid and stranded conductors from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG).
This is a free-hanging (in-line) plug with 180° wire entry.
It uses a screwless push-in spring connection.
The housing is green, made of PA (polyamide) with UL 94 V0 flammability rating.
