| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

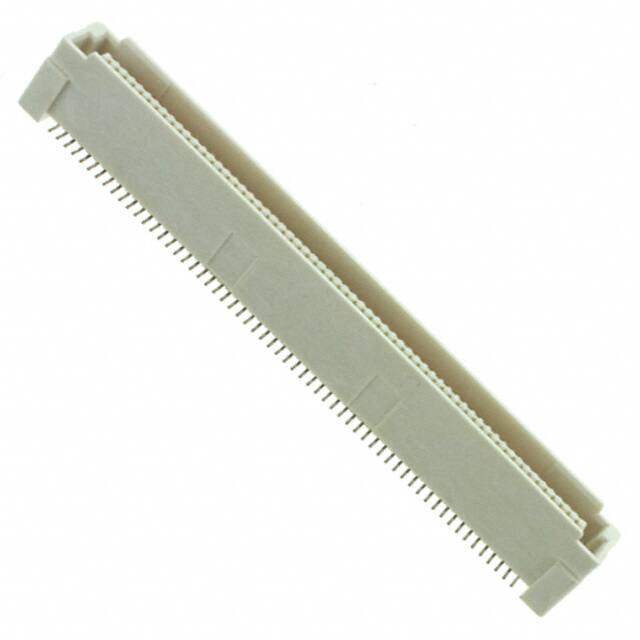

The TE Connectivity 179031-5 is a 120-position, 2-row mezzanine (board-to-board) connector plug featuring center strip contacts. It uses a 0.80mm pitch and is designed for surface mount attachment. The contacts are finished with 8.00µin (0.203µm) of gold, ensuring reliable signal integrity. The connector body includes a board guide feature to aid alignment during assembly.
This plug is designed to mate with stacking heights of 8mm, 12mm, 16mm, or 20mm, providing flexibility for various board spacing requirements. The connector stands 7.60mm above the board. As a plug with center strip contacts, it is intended for use with a compatible receptacle to form a high-density, parallel board-to-board connection.
The pitch is 0.80mm.
The 179031-5 has 120 positions in 2 rows.
This connector uses surface mount mounting.
The contact finish is gold with a thickness of 8.00µin (0.203µm).
The mated stacking heights supported are 8mm, 12mm, 16mm, and 20mm.
