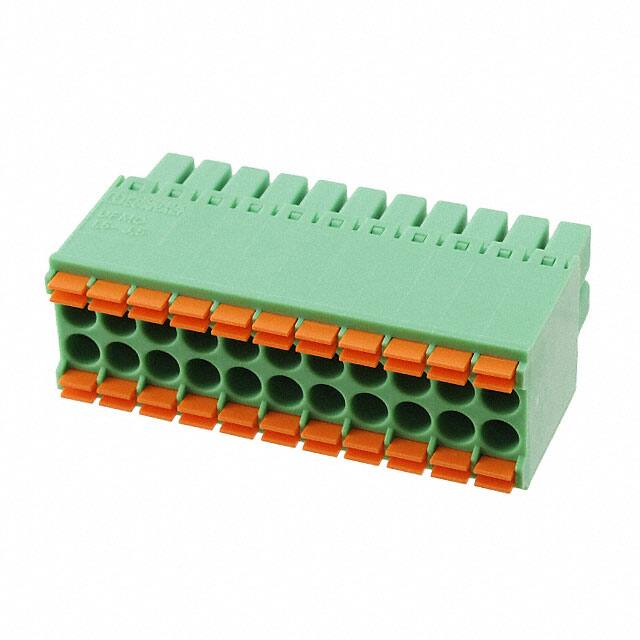

1790195 Phoenix Contact 1790195 is a 22-position terminal block plug with 3.5 mm pitch, rated 8 A and 150 V, featuring screwless push-in spring termination for free hanging (in-line) mounting.
Mfr Part #:

1790195

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1790195 is a 22-position terminal block plug with 3.5 mm pitch, rated 8 A and 150 V, featuring screwless push-in spring termination for free hanging (in-line) mounting.
✓ Total Stock: 50 pcs

1790195 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1790195 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1790195 Description

Short technical summary and product information.

The Phoenix Contact 1790195 is a printed-circuit board connector plug from the DFMC 1,5/..-ST series. It has 22 positions arranged in 2 levels with 11 positions per level and a 3.5 mm pitch. The plug uses a screwless push-in spring connection method for fast conductor termination without tools. It accepts solid or stranded conductors from 0.2 to 1.5 mm² (24-16 AWG) with a 10 mm stripping length.



Rated at 8 A nominal current and 150 V (UL Use Group B), the plug also carries rated voltages of 160 V (III/2) and 250 V (II/2) with a rated surge voltage of 2.5 kV. The insulating material is polyamide (PA) with flammability class UL 94 V0. Contact mating finish is tin.



The plug is designed for free hanging (in-line) mounting with a 180° wire entry. Its compact dimensions are 22.65 mm length and 13.25 mm height. The green housing and Lock & Release levers provide secure locking to mating headers and easy release.

1790195 Quick Information

Product Type: Terminal Block Plug
Series: DFMC 1,5
Canonical Name: Phoenix Contact DFMC 1,5/11-ST-3,5 Plug, Female Sockets
Subcategory: Headers, Plugs and Sockets

1790195 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1790195 Features

  • 22 positions in 2 levels, 3.5 mm pitch.
  • Screwless push-in spring wire termination.
  • Rated 8 A current and 150 V voltage.
  • Accepts 0.2-1.5 mm² solid or stranded wire.
  • UL 94 V0 flammability rated PA housing.

1790195 Applications

  • Used in industrial control cabinet wiring.
  • Ideal for PCB-to-wire interconnections.
  • Suitable for automation and sensor systems.
  • Applied in solar and PV system connections.

1790195 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1790195 have?

The 1790195 has 22 positions arranged in 2 levels with 11 positions per level.

What is the pitch of this terminal block plug?

The pitch is 3.5 mm.

What is the current and voltage rating?

The nominal current is 8 A. The rated voltage is 150 V (UL Use Group B) and 160 V (III/2) or 250 V (II/2).

What wire sizes does it accept?

It accepts solid or stranded conductors from 0.2 to 1.5 mm² (24-16 AWG).

What is the mounting type?

Free hanging (in-line) mounting with 180° wire entry.

What termination method does it use?

Screwless push-in spring connection.

What is the flammability rating of the housing?

The insulating material is PA with flammability class UL 94 V0.
