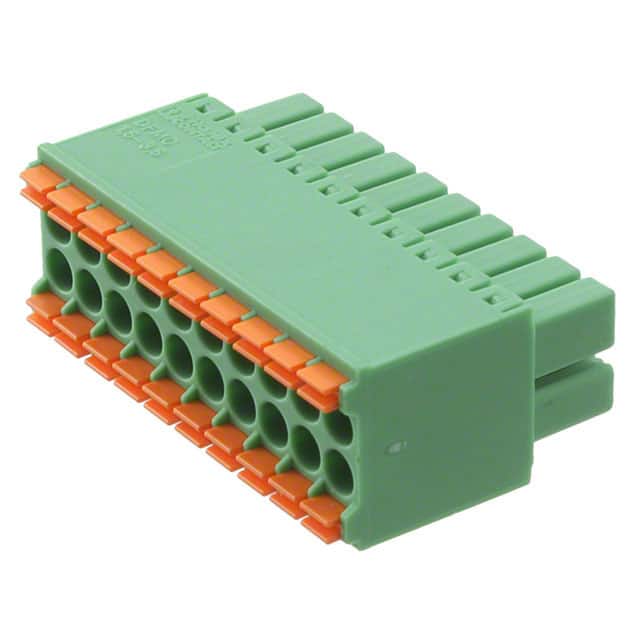

1790182 Phoenix Contact 1790182 is a 20-position PCB plug connector with 3.5 mm pitch, push-in spring termination, and a green insulating body rated for 8 A and 150 V.
Mfr Part #:

1790182

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1790182 is a 20-position PCB plug connector with 3.5 mm pitch, push-in spring termination, and a green insulating body rated for 8 A and 150 V.
✓ Total Stock: 38 pcs

1790182 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1790182 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Height
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1790182 Description

Short technical summary and product information.

The Phoenix Contact 1790182 is a PCB plug connector from the DFMC 1,5/..-ST series. It features 20 positions arranged in 2 levels with 10 positions per level and a 3.5 mm pitch. The plug uses a screwless push-in spring termination for fast conductor connection, accepting solid or stranded wires from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG) with a 10 mm stripping length.



Electrically, the connector is rated for a nominal current of 8 A and a nominal voltage of 150 V (UL/CUL Use Group B). It has a rated voltage of 160 V (III/2) and 250 V (II/2) per EN-VDE, with surge voltage ratings of 2.5 kV across all overvoltage categories. The contact mating finish is tin.



Mechanically, the plug is a free-hanging (in-line) component with 180° wire entry. The housing dimensions are 13.25 mm height, 22.65 mm length, and 31.5 mm width (Dimension a). The insulating material is polyamide (PA) with a UL 94 V0 flammability rating, making it suitable for demanding environments.

1790182 Quick Information

Product Type: PCB Plug Connector
Series: DFMC 1,5/..-ST
Canonical Name: Phoenix Contact DFMC 1,5/20-ST-3,5 PCB Plug Connector, 20 Positions, 3.5 mm Pitch
Subcategory: PCB Terminal Block Plug

1790182 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1790182 Features

  • 20 positions on 2 levels with 3.5 mm pitch.
  • Push-in spring termination for tool-less wiring.
  • Rated for 8 A and 150 V (UL Use Group B).
  • Accepts 24 AWG to 16 AWG solid or stranded wire.
  • UL 94 V0 flammability rated polyamide housing.

1790182 Applications

  • Industrial control cabinet wiring and connections.
  • PLCs and I/O system interconnect cabling.
  • Building automation and solar/PV system controllers.
  • Factory automation sensor and actuator connections.
  • Power supply and signal distribution in compact assemblies.

1790182 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1790182 have?

The connector has 20 positions arranged in 2 levels with 10 positions per level.

What is the pitch of this connector?

The pitch is 3.5 mm.

What is the current and voltage rating?

The nominal current is 8 A and the voltage rating is 150 V (UL Use Group B). Rated voltage is 160 V (III/2) and 250 V (II/2) per EN-VDE.

What termination style does this plug use?

The termination style is screwless push-in spring (push-in direct plug-in technology).

What wire sizes are compatible?

The connector accepts solid or stranded conductors from 0.2 mm² to 1.5 mm² (24 AWG to 16 AWG).
