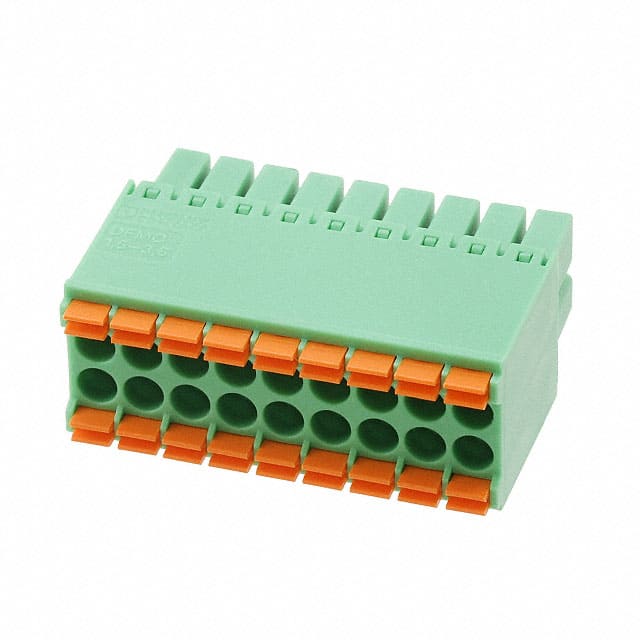

1790179 Phoenix Contact 1790179 is a 2-level plug with female sockets, 18 positions total (9 per level), 3.50mm pitch, and screwless push-in spring termination for free hanging (in-line) mounting.
Mfr Part #:

1790179

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1790179 is a 2-level plug with female sockets, 18 positions total (9 per level), 3.50mm pitch, and screwless push-in spring termination for free hanging (in-line) mounting.
✓ Total Stock: 6 pcs

1790179 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1790179 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1790179 Description

Short technical summary and product information.

The Phoenix Contact 1790179 is a 2-level terminal block plug with female sockets, offering 18 positions (9 per level) on a 3.50mm pitch. It features a screwless push-in spring termination style, enabling quick and tool-free wire connection. The plug is designed for free hanging (in-line) mounting with a 180° wire entry angle.



Rated for 8A and 150V, it accepts wire sizes from 0.2 to 1.5mm². The contact mating finish is tin, and the housing is green. This connector is suitable for industrial control and signal wiring applications where space is constrained and reliable, fast termination is required.



The component is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

1790179 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1790179 Terminal Block Plug, Female Sockets, 18 Position, 2 Level, 3.50mm Pitch, Free Hanging, Push-In Spring Termination
Subcategory: Headers, Plugs and Sockets

1790179 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1790179 Features

  • 18 positions in 2 levels with 9 per level.
  • 3.50mm pitch for compact wiring density.
  • Screwless push-in spring termination for fast wiring.
  • Rated for 8A at 150V operation.
  • Free hanging (in-line) with 180° wire entry.

1790179 Applications

  • Industrial control system field wiring.
  • Sensor and actuator signal connections.
  • Building automation terminal block interfacing.
  • Compact in-line wiring for tight enclosures.

1790179 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1790179 terminal block plug have?

The 1790179 has a total of 18 positions arranged in 2 levels with 9 positions per level.

What is the pitch of the 1790179 Phoenix Contact plug?

The pitch is 3.50 mm.

What is the current and voltage rating of the 1790179?

The current rating is 8 A and the voltage rating is 150 V.

What mounting style does the 1790179 use?

The mounting type is free hanging (in-line).

What termination style does the 1790179 terminal block plug feature?

It uses a screwless push-in spring termination.

What wire gauge range does the 1790179 accept?

It accepts wire from 0.2 to 1.5 mm².
