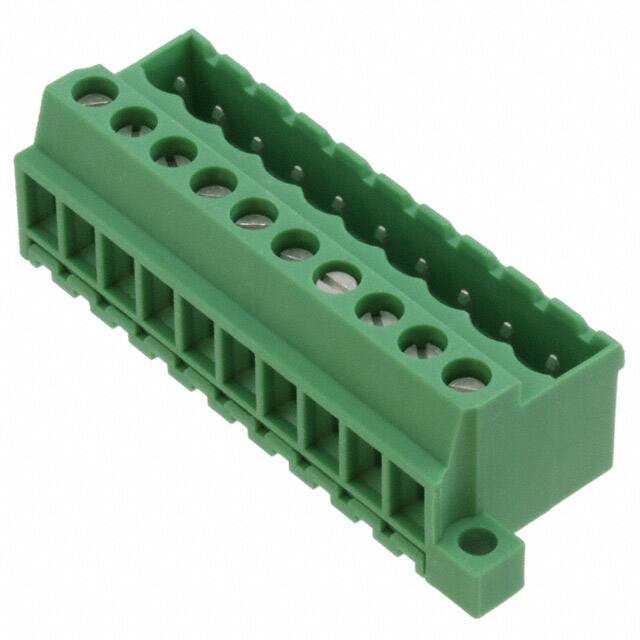

1788619 Terminal block receptacle, 10 positions, 5.08mm pitch, rated 12A at 320V, with screw termination and green PA housing.
Mfr Part #:

1788619

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block receptacle, 10 positions, 5.08mm pitch, rated 12A at 320V, with screw termination and green PA housing.
✓ Total Stock: 50 pcs

1788619 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1788619 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1788619 Description

Short technical summary and product information.

The Phoenix Contact 1788619 is a 10-position base strip from the MVSTBU 2,5/..-GB series. It features a pitch of 5.08mm and uses a screw connection method for secure wire termination. This component is rated for a nominal current of 12A and has a rated voltage of 320V (III/2) or 630V (II/2), with a rated surge voltage of 4kV. The insulating material is polyamide (PA) with a flammability rating of UL 94 V-2. The contact mating finish is tin. It includes a mounting flange for direct installation on mounting plates or unit housings. The conductor cross-section range spans 0.2 to 2.5 mm² (24-12 AWG) for both solid and stranded wires. The required stripping length is 7mm, and the screw thread is M3 with a tightening torque of 0.5-0.6 Nm. Color is green.

1788619 Quick Information

Product Type: Terminal Block Header/Plug/Socket
Series: COMBICON M
Canonical Name: Phoenix Contact MVSTBU 2,5/10-GB-5,08 Base Strip
Subcategory: Headers, Plugs and Sockets

1788619 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant

1788619 Features

  • 10 positions with 5.08mm pitch.
  • Rated for 12A maximum load current.
  • Screw termination for secure connections.
  • Green PA insulating material UL 94 V-2.
  • Includes mounting flange for direct mounting.

1788619 Applications

  • For mounting on mounting plates or unit housings.
  • Suitable for industrial control and automation.
  • Used in power distribution and signal wiring.
  • Ideal for permanent wire-to-board connections.

1788619 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

10 positions

What is the pitch of the Phoenix Contact 1788619?

5.08mm

What is the current rating of this part?

Nominal current is 12 A, maximum load current is 12 A.

What is the voltage rating?

Rated voltage (III/2): 320 V, Rated voltage (II/2): 630 V.

What is the mounting type?

Board Mount with a mounting flange.
