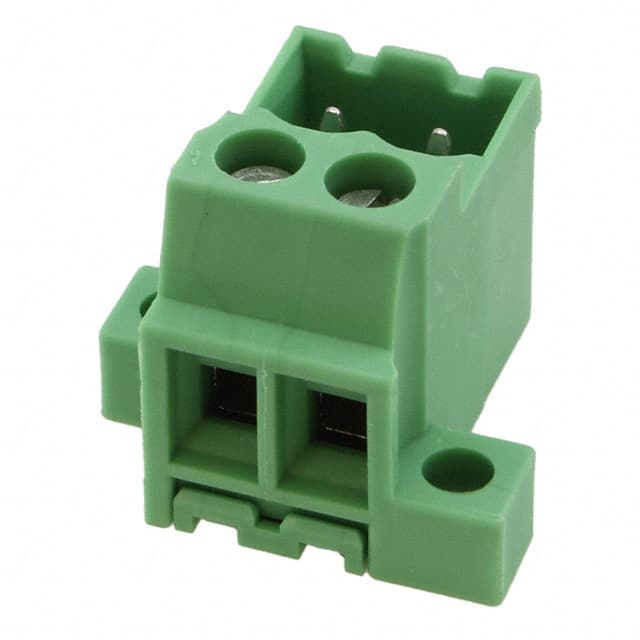

1788538 Phoenix Contact 1788538 is a 2-position terminal block receptacle with 5.08mm pitch. It features screw termination, green housing, and is rated for 12A and 320V.
Mfr Part #:

1788538

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1788538 is a 2-position terminal block receptacle with 5.08mm pitch. It features screw termination, green housing, and is rated for 12A and 320V.
✓ Total Stock: 45 pcs

1788538 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1788538 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1788538 Description

Short technical summary and product information.

The Phoenix Contact 1788538 is a base strip (receptacle) from the MVSTBU 2,5/..-GB series. It has 2 positions with a 5.08mm pitch and uses screw connection for wire termination. The contact mating finish is tin, and the insulating material is PA (polyamide) with a flammability rating of UL 94 V-2. It is designed for board mounting and includes a mounting flange for secure attachment. Electrical ratings include a nominal current of 12A and rated voltage of 320V (III/2). The wire gauge range is 0.2-2.5 mm². The screw thread is M3 with a tightening torque of 0.5-0.6 Nm. Stripping length is 7 mm. This component is suitable for industrial control and power distribution applications where reliable screw connections are required.

1788538 Quick Information

Product Type: Terminal Block Receptacle
Series: MVSTBU 2,5/..-GB
Canonical Name: Phoenix Contact MVSTBU 2,5/ 2-GB-5,08 Base Strip
Subcategory: Base Strip

1788538 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Unaffected

1788538 Features

  • 2 positions with 5.08 mm pitch.
  • Screw termination with M3 thread.
  • Rated for 12 A and 320 V.
  • Green polyamide housing, UL 94 V-2.
  • Includes mounting flange for secure installation.

1788538 Applications

  • Industrial control panel wiring.
  • Power distribution in machinery.
  • Screw connection for reliable termination.
  • Board-to-wire applications.

1788538 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1788538 have?

It has 2 positions.

What is the pitch of the 1788538?

5.08 mm.

What is the current rating?

12 A nominal.

What is the voltage rating?

320 V (III/2).

What is the mounting type?

Board mount with mounting flange.

What termination style does it use?

Screw connection.

What wire gauge range is supported?

0.2-2.5 mm².
