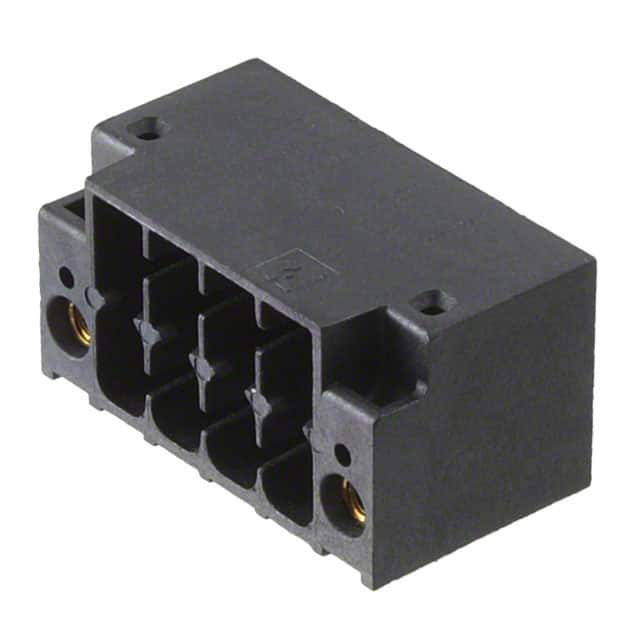

1787030 Phoenix Contact 1787030 is an 8 position, 2 level, 3.5 mm pitch right angle through hole header with shrouded male pins and tin contact finish.
Mfr Part #:

1787030

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1787030 is an 8 position, 2 level, 3.5 mm pitch right angle through hole header with shrouded male pins and tin contact finish.
✓ Total Stock: 49 pcs

1787030 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1787030 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1787030 Description

Short technical summary and product information.

The Phoenix Contact 1787030 is a printed-circuit board header from the DMC 1,5/..-G1F-THR series. It features 8 positions arranged in 2 levels with 4 positions per level, a 3.5 mm pitch, and a right angle orientation for space-saving PCB layouts. The header is shrouded on 4 sides and includes a mating and mounting flange for secure connection.



Electrical ratings include a nominal current of 8 A and a rated voltage of 150 V (UL/CUL Use Group B) or 160 V (III/2). The rated surge voltage is 2.5 kV (III/2). The insulating material is LCP (Liquid Crystal Polymer) with flammability class V0 according to UL 94. The contact mating finish is tin.



This header is designed for through hole mounting with solder termination. It is suitable for SMT and wave soldering processes. The product is UL recognized, cUL recognized, and cULus recognized. The packing unit is 1 piece.

1787030 Quick Information

Product Type: Header
Series: DMC 1,5/..-G1F-THR
Canonical Name: Phoenix Contact DMC 1,5/..-G1F-THR Series 8 Position 3.5 mm Pitch Right Angle Through Hole Header
Subcategory: Terminal Block Header

1787030 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1787030 Features

  • 8 positions in 2 levels with 3.5 mm pitch.
  • Right angle orientation for compact PCB layouts.
  • Shrouded header with mating and mounting flange.
  • Rated 8 A current and 150 V voltage.
  • UL recognized with V0 flammability rating.

1787030 Applications

  • Used in industrial control and automation systems.
  • Suitable for PCB-to-wire connections in terminal blocks.
  • Ideal for space-constrained right angle applications.
  • Compatible with Phoenix Contact plug connectors.

1787030 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1787030 header have?

The header has 8 positions arranged in 2 levels with 4 positions per level.

What is the pitch of the 1787030 header?

The pitch is 3.5 mm.

What is the current rating of the 1787030?

The nominal current rating is 8 A.

What is the voltage rating of the 1787030?

The rated voltage is 150 V (UL/CUL Use Group B) and 160 V (III/2).

What is the mounting type for this header?

The mounting type is through hole with solder termination.

What is the contact finish on the 1787030?

The contact mating finish is tin.

Is the 1787030 UL recognized?

Yes, it is UL recognized, cUL recognized, and cULus recognized.
