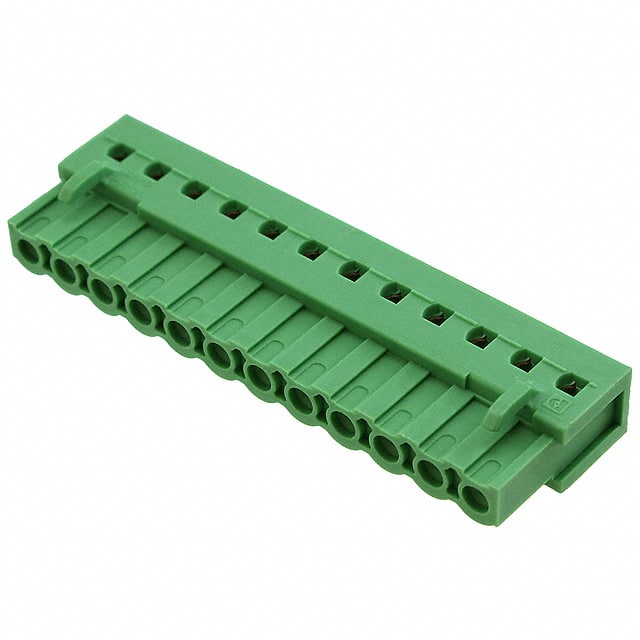

1786501 This is a 12-position, single-level terminal block header with female sockets, a 5.08mm pitch, and a right-angle through-hole mounting design. It is rated for 10 A and 300 V with tin-plated contacts.
Mfr Part #:

1786501

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 12-position, single-level terminal block header with female sockets, a 5.08mm pitch, and a right-angle through-hole mounting design. It is rated for 10 A and 300 V with tin-plated contacts.
✓ Total Stock: 26 pcs

1786501 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1786501 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1786501 Description

Short technical summary and product information.

The Phoenix Contact 1786501 is a 12-position terminal block header designed for use in connectorized wiring applications. It features female socket contacts arranged in a single level with a pitch of 5.08mm (0.200 inches).



The header has a right-angle (90°) orientation and is intended for through-hole soldering to a printed circuit board. The housing is green and includes retention latches for secure mating with compatible plug connectors.



Electrical ratings for this component are 10 A current and 300 V voltage. The contact mating surface is finished with tin. This part is categorized as a header with female sockets, commonly used in industrial control, automation, and power distribution systems.

1786501 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1786501 Terminal Block Header, Female Sockets, 12 Positions, 5.08mm Pitch, Through Hole, Right Angle
Subcategory: Terminal Block Headers

1786501 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1786501 Features

  • 12 positions with 5.08mm pitch.
  • Single-level female socket header.
  • Right-angle through-hole mounting.
  • Rated for 10A and 300V.
  • Tin-plated contact mating finish.

1786501 Applications

  • Used in industrial control panel wiring.
  • Suitable for power distribution applications.
  • Common in automation and machinery connections.
  • Ideal for PCB-to-wire interface designs.

1786501 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

How many positions does the 1786501 have?

It has 12 positions in a single level.

What is the current and voltage rating?

It is rated for 10 A and 300 V.

What mounting type does this header use?

It uses through-hole mounting with solder termination.

Does the header have retention latches?

Yes, it features retention latches.

What is the contact mating finish?

The contact mating finish is tin.

What color is the housing?
