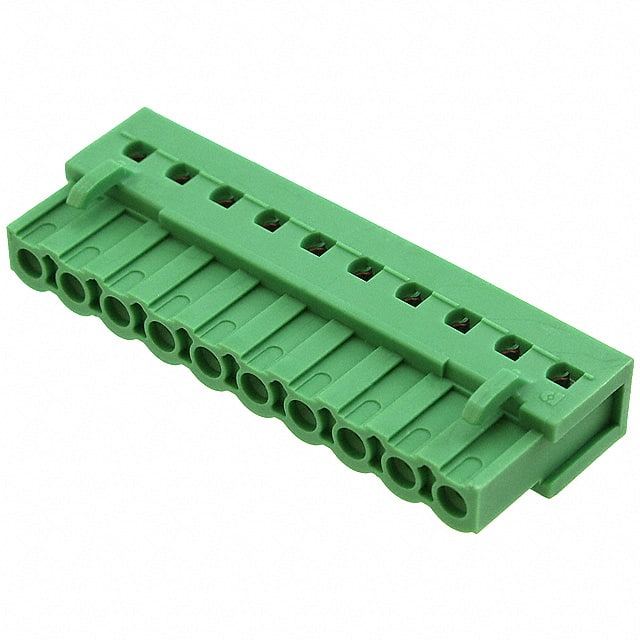

1786488 Phoenix Contact IC 2,5/10-G-5,08 base strip header with 10 positions, 5.08 mm pitch, rated 12 A and 320 V. Through hole mounting with right angle orientation.
Mfr Part #:

1786488

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact IC 2,5/10-G-5,08 base strip header with 10 positions, 5.08 mm pitch, rated 12 A and 320 V. Through hole mounting with right angle orientation.
✓ Total Stock: 52 pcs

1786488 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1786488 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1786488 Description

Short technical summary and product information.

The Phoenix Contact 1786488 is a 10-position terminal block header from the IC 2,5/..-G series. It features a 5.08 mm pitch and is designed for through hole soldering with a right angle orientation. The header uses female sockets and is rated for a nominal current of 12 A and a rated voltage of 320 V (III/2). The insulating material is PA (polyamide) with a UL 94 V0 flammability rating. Contact mating finish is tin. The product includes retention latches for secure mating. Pin dimensions are 1.2 x 0.5 mm with a hole diameter of 1.4 mm. The overall length is 19 mm and the dimension from first to last pin center is 45.72 mm. Color is green.

1786488 Quick Information

Product Type: Terminal Block Header
Series: IC 2,5/..-G
Canonical Name: IC 2,5/10-G-5,08 Base Strip Header, Female Sockets
Subcategory: Terminal Block Headers

1786488 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1786488 Features

  • 10 position, 5.08 mm pitch header.
  • Rated 12 A and 320 V.
  • Through hole, right angle mounting.
  • Green PA insulating material, UL 94 V0.
  • Tin contact mating finish with retention latches.

1786488 Applications

  • PCB board-to-board connections.
  • Primary/secondary PCB connections.
  • Shock-proof application terminations.
  • Clear separation of PCB inputs/outputs.

1786488 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1786488 have?

This header has 10 positions.

What is the pitch of this terminal block header?

The pitch is 5.08 mm.

What is the current and voltage rating of the 1786488?

It is rated for 12 A nominal current and 320 V rated voltage (III/2) according to EN-VDE.

What is the mounting type for this header?

It is a through hole mounting component with solder termination.

What is the insulating material and flammability rating?

The insulating material is PA (polyamide) with a UL 94 V0 flammability rating.
