1786462 8-position terminal block header from Phoenix Contact with 5.08mm pitch, right angle orientation, through hole mounting, and tin-plated contacts.
Mfr Part #:

1786462

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
8-position terminal block header from Phoenix Contact with 5.08mm pitch, right angle orientation, through hole mounting, and tin-plated contacts.
✓ Total Stock: 22 pcs

1786462 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1786462 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1786462 Description

Short technical summary and product information.

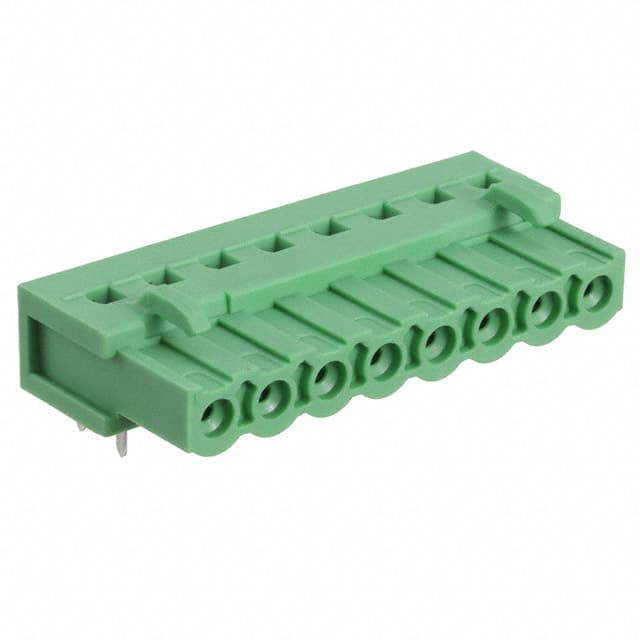

The Phoenix Contact 1786462 (IC 2,5/ 8-G-5,08) is an 8-position header with female sockets designed for PCB termination. It features a 5.08mm pitch and a right-angle, through-hole mounting style with solder termination. The header is rated for 12 A nominal current (IEC) and 320 V rated voltage (III/2), with UL ratings of 12 A / 250 V (Use Group B) and 10 A / 300 V (Use Group D).



The insulating material is green polyamide (PA) with a V0 flammability rating per UL 94, ensuring flame retardant performance. Contact mating finish is tin, and the header includes retention latches for secure mating with compatible plug connectors. The pin dimensions are 1.2 x 0.5 mm with a recommended hole diameter of 1.4 mm.



This header is commonly used in control cabinets, industrial automation, and device connection applications where a reliable and compact board-to-wire interface is required. It mates with Phoenix Contact MSTB 2,5 series plugs for primary/secondary PCB connections and can be used for 90° board-to-board connections.

1786462 Quick Information

Product Type: Header, Female Sockets
Canonical Name: Phoenix Contact IC 2,5/ 8-G-5,08 Header, Female Sockets, 8 Positions, 5.08 mm Pitch, Through Hole, Right Angle
Subcategory: Terminal Block Headers

1786462 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1786462 Features

  • 8 positions with 5.08mm pitch spacing.
  • Right angle orientation for compact PCB layouts.
  • Rated 12A IEC / 12A UL use group B.
  • Green polyamide insulator, UL 94 V-0 rated.
  • Tin-plated contacts for reliable solder joints.

1786462 Applications

  • PCB-to-wire connections in control cabinets.
  • Primary/secondary PCB connection with MSTB 2.5 plugs.
  • 90-degree board-to-board connections using guide rails.
  • Industrial automation and device connection interfaces.

1786462 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the 1786462 header?

The pitch is 5.08 mm (0.200 inches).

What is the current rating of the 1786462?

The nominal current per IEC is 12 A. UL ratings are 12 A for Use Group B and 10 A for Use Group D.

What is the voltage rating of the 1786462?

IEC rated voltages are 320 V (III/2) and 630 V (II/2). UL ratings are 250 V for Use Group B and 300 V for Use Group D.

What mounting type does the 1786462 use?

It uses through hole mounting with solder termination.

What is the insulation material and flammability rating?

The insulating material is polyamide (PA) with a flammability class of V0 per UL 94.
