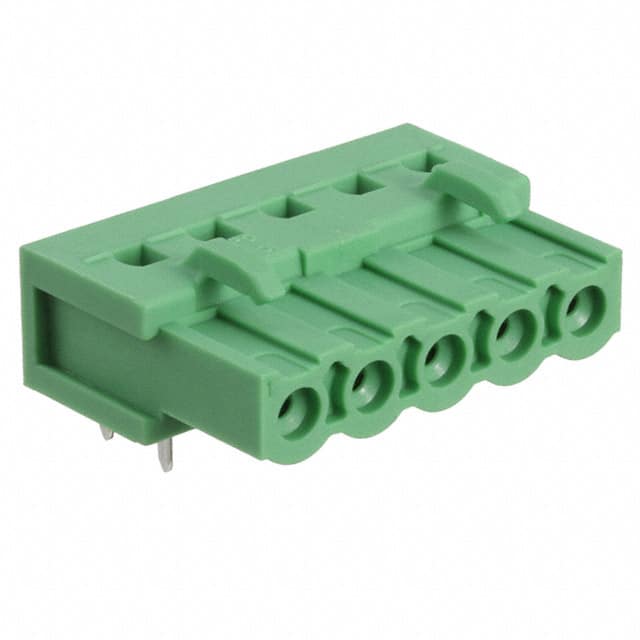

1786433 Phoenix Contact 1786433 is a 5 position, single level, 5.08mm pitch right angle through hole header with female sockets, rated 10A and 300V.
Mfr Part #:

1786433

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1786433 is a 5 position, single level, 5.08mm pitch right angle through hole header with female sockets, rated 10A and 300V.
✓ Total Stock: 21 pcs

1786433 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1786433 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1786433 Description

Short technical summary and product information.

The Phoenix Contact 1786433 is a 5 position header with female sockets designed for terminal block interconnect applications. It features a 5.08mm pitch and a right angle (90°) orientation for through hole mounting with solder termination. The single level design accommodates 5 positions per level. Electrical ratings include 10A current and 300V voltage. Contact mating finish is tin, and the housing is green. Retention latches are included for secure mating with plug connectors. This component is RoHS3 compliant and REACH unaffected with an MSL of 1 (unlimited).

1786433 Quick Information

Product Type: Header, Female Sockets
Canonical Name: Phoenix Contact 1786433 - 5 Position 5.08mm Right Angle Through Hole Header, Female Sockets
Subcategory: Female Sockets

1786433 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1786433 Features

  • 5 position single level header.
  • 5.08mm pitch right angle orientation.
  • Rated 10A and 300V.
  • Tin contact mating finish.
  • Includes retention latches.

1786433 Applications

  • Used in terminal block interconnect systems.
  • Suitable for industrial control panels.
  • Ideal for power distribution applications.
  • Right angle design saves board space.

1786433 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1786433 have?

5 positions, single level, 5 positions per level.

What is the pitch of this header?

5.08mm (0.200 inches).

What is the current and voltage rating?

10A and 300V.

What is the mounting type?

Through hole with solder termination, right angle orientation.

What color is the housing?

Green.

Does it have retention latches?

Yes, retention latches are included.
