| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

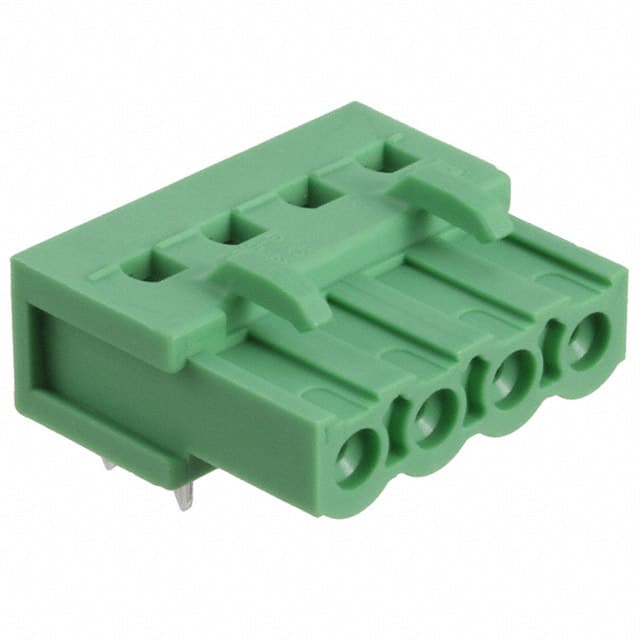

The Phoenix Contact 1786420 is a 4-position, single-level terminal block header with female sockets. It features a 5.08mm pitch and a 90-degree right angle orientation, designed for through-hole soldering. The header is rated for 300V and 10A, with tin-plated contacts for reliable electrical connections.
This header is part of the terminal block headers, plugs, and sockets category. It includes retention latches for secure mating and is housed in a green insulator. The 5.08mm pitch is a common standard for industrial control and automation applications.
The through-hole mounting and solder termination provide a robust mechanical connection to the PCB. The right-angle orientation allows for space-saving designs where connectors are placed at the edge of the board.
The 1786420 has 4 positions in a single level.
The pitch is 5.08mm (0.200 inches).
The current rating is 10A.
The voltage rating is 300V.
The mounting type is through hole.
The contact mating finish is tin.
The header is green.
