| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

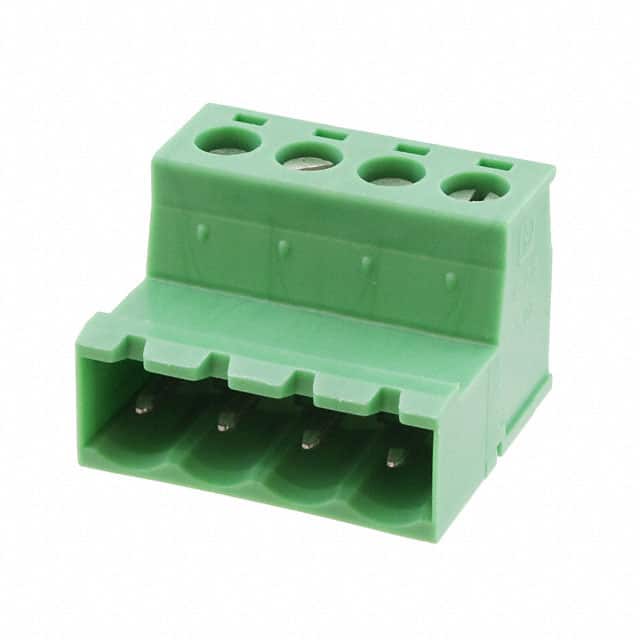

The Phoenix Contact 1786190 is a 4-position terminal block plug with male pins. It features a 5.08mm pitch and accepts wire gauges from 0.2 to 2.5mm². The plug uses a screw-rising cage clamp termination style and supports 180° wire entry.
Rated for 300V and 10A, this green plug is designed for free hanging (in-line) mounting. Contacts are finished with tin for reliable mating. The component is classified as RoHS3 Compliant with an MSL of 1 (unlimited) and is REACH Unaffected.
Ideal for use in industrial control panel wiring, field device connections, and power distribution blocks where reliable screw clamp wire termination is required.
It has 4 positions (4 positions per level, 1 level).
The pitch is 5.08mm (0.200").
The plug is rated for 300V and 10A.
Free hanging (in-line) mounting.
The plug accepts wire sizes from 0.2 to 2.5mm².
Screw - rising cage clamp termination.
