| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

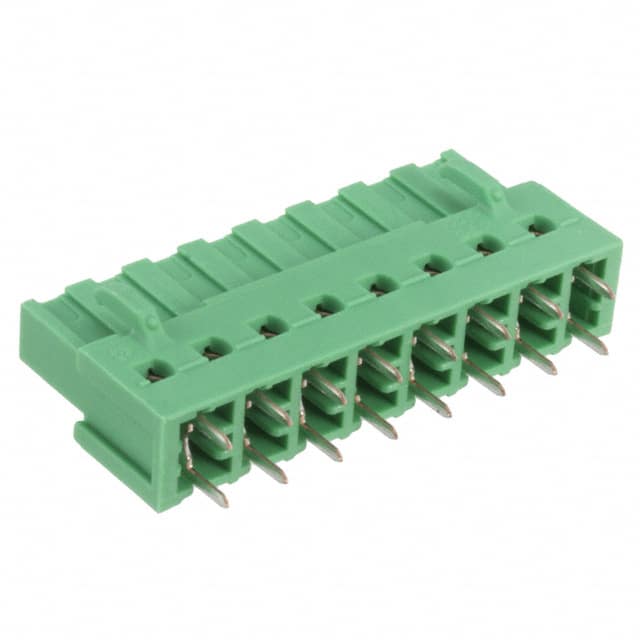

The Phoenix Contact 1786006 is a terminal block header designed for wire-to-board connections in industrial control and automation systems. It features 8 positions arranged in a single level with a 5.08mm pitch, providing a compact yet robust interface for signal and power distribution.
This header uses female socket contacts with a tin mating finish and includes retention latches for secure mating with compatible plug connectors. Rated for 10A current and 300V voltage, it is suitable for a wide range of low-to-medium power applications. The through hole mounting and solder termination ensure reliable mechanical and electrical connections on printed circuit boards.
The green housing is typical for Phoenix Contact terminal blocks, aiding visual identification in dense wiring environments. The component is RoHS3 compliant and has an MSL of 1 (unlimited floor life), simplifying handling and storage.
It has 8 positions arranged in a single level.
The pitch is 5.08mm (0.200 inches).
It is rated for 10A current and 300V voltage.
It uses through hole mounting with solder termination.
The housing is green.
Yes, it includes retention latches for secure mating with plugs.
