1785971 Phoenix Contact 1785971 is a 5-position, single-level header with female sockets, 5.08mm pitch, rated 12A and 320V. Through hole solder termination, green insulating body with tin-plated contacts.
Mfr Part #:

1785971

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1785971 is a 5-position, single-level header with female sockets, 5.08mm pitch, rated 12A and 320V. Through hole solder termination, green insulating body with tin-plated contacts.
✓ Total Stock: 11 pcs

1785971 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1785971 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Halogen Free
Header Orientation
Hole Diameter
Industrial Grade
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1785971 Description

Short technical summary and product information.

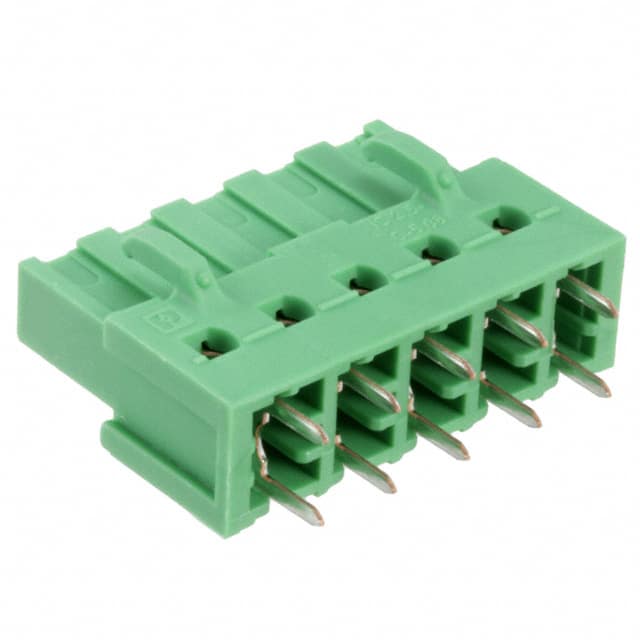

The Phoenix Contact 1785971 is a vertical header with female sockets from the ICV 2,5/..-G series. It features 5 positions arranged in a single level with a 5.08mm pitch, designed for through hole soldering. The header is rated for a nominal current of 12A and a rated voltage of 320V (III/2) or 630V (II/2), with a rated surge voltage of 4kV. The insulating material is PA (polyamide) with flammability class UL 94 V0. The contact mating finish is tin, and the pin dimensions are 1.2 x 0.5 mm with a hole diameter of 1.4 mm. The header includes retention latches for secure mating. It is suitable for use in shock-proof applications and can be combined with MSTB 2,5 headers for PCB connections.

1785971 Quick Information

Product Type: Header, Female Sockets
Series: ICV 2,5/..-G
Canonical Name: Phoenix Contact ICV 2,5/5-G-5,08 Header, Female Sockets
Subcategory: Terminal Block Headers

1785971 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1785971 Features

  • 5 positions, single level, 5.08mm pitch.
  • Rated 12A nominal current, 320V rated voltage.
  • Through hole solder termination, vertical orientation.
  • Green PA insulating body, UL 94 V0 rated.
  • Tin-plated contact mating surface with retention latches.

1785971 Applications

  • PCB header for terminal block connections.
  • Use in shock-proof industrial control panels.
  • Board-to-board connection with guide rails.
  • Clear separation of PCB inputs and outputs.

1785971 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1785971 have?

It has 5 positions arranged in a single level.

What is the pitch of this header?

The pitch is 5.08 mm.

What is the current rating of the 1785971?

The nominal current IN is 12 A, and the maximum load current is also 12 A.

What is the voltage rating of this header?

The rated voltage is 320 V for overvoltage category III/2 and 630 V for category II/2.

What mounting type does the 1785971 use?

It uses through hole mounting with solder termination.

What is the insulating material and flammability rating?

The insulating material is PA (polyamide) with flammability class UL 94 V0.

What are the UL ratings for this header?

UL/CUL Use Group B: 250 V, 12 A. Use Group D: 300 V, 10 A.
