1785955 Phoenix Contact 1785955 is a 3-position header with female sockets, 5.08mm pitch, through hole mounting, vertical orientation, rated 12 A and 320 V.
Mfr Part #:

1785955

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1785955 is a 3-position header with female sockets, 5.08mm pitch, through hole mounting, vertical orientation, rated 12 A and 320 V.
✓ Total Stock: 26,256 pcs

1785955 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
13,128 pcs
On Request
13128 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
13,128 pcs
On Request
13128 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1785955 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Rated Voltage
Termination Style
Type
Voltage
View Similar Products (0)

1785955 Description

Short technical summary and product information.

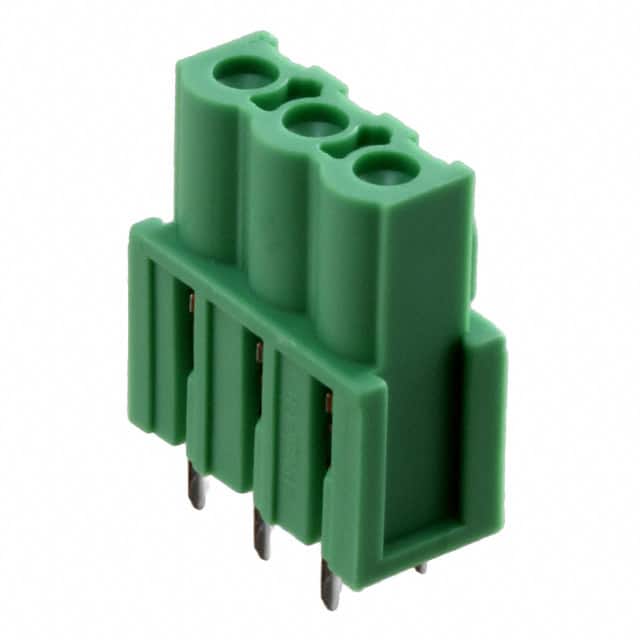

The Phoenix Contact 1785955 is a 3-position header with female sockets from the ICV 2.5/..-G series. It features a 5.08mm pitch and is designed for through hole soldering. The header is green with tin-plated contacts and includes retention latches for secure mating.



Electrical ratings include a nominal current of 12 A and a nominal voltage of 320 V (III/2). The part is rated for 300 V in UL Use Group D (10 A) and 250 V in UL Use Group B (12 A). The insulating material is PA with a V0 flammability rating per UL 94.



The package comes in a standard quantity of 50 pieces. The component is WEEE/RoHS compliant since 2003.

1785955 Quick Information

Product Type: Header, Female Sockets
Series: ICV 2,5/..-G
Canonical Name: Phoenix Contact ICV 2.5/3-G-5.08 Header, Female Sockets, 3 Positions, 5.08mm Pitch, Through Hole, Vertical, Green, Tin Contacts
Subcategory: Female Sockets

1785955 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1785955 Features

  • Three positions with 5.08mm pitch spacing.
  • Through hole mounting with solder termination.
  • Vertical header orientation for compact designs.
  • Rated 12 A nominal current at 320 V.
  • Green insulating body with tin contacts.

1785955 Applications

  • Ideal for PCB-to-wire connections in industrial controls.
  • Suitable for power distribution in terminal blocks.
  • Use in automation and building technology systems.
  • Compatible with ICV series plug connectors.

1785955 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1785955 have?

It has 3 positions.

What is the pitch of the 1785955 header?

The pitch is 5.08 mm.

What is the current rating for Phoenix Contact 1785955?

The nominal current is 12 A, with a maximum load current of 12 A. For UL/CUL Use Group D, the nominal current is 10 A.

What voltage ratings apply to the 1785955?

Rated voltage (III/2) is 320 V, (II/2) is 630 V. UL/CUL Use Group B is 250 V, Use Group D is 300 V.

What is the mounting style of the 1785955?

Through hole mounting with solder termination.

Is the Phoenix Contact 1785955 RoHS compliant?

Yes, it is WEEE/RoHS-compliant since 01/01/2003.

What is the standard package quantity for part 1785955?

50 pieces per package.
