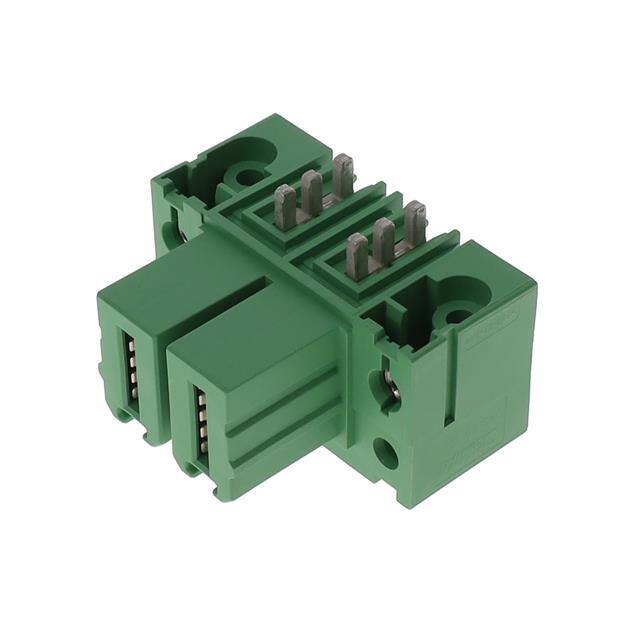

The Phoenix Contact 1784910 is a printed-circuit board connector header from the IPC 35 HC series. It features 2 blade socket positions with a 15 mm pitch, arranged in a right angle (90°) orientation for through hole soldering. The header is designed for high-current applications, with a rated current of 125 A and a rated voltage of 1000 V (III/2) per EN-VDE standards. UL ratings are 600 V and 115 A.
The housing is made of green PBT insulating material with a flammability class of UL 94 V0. The contact mating surface is finished with silver for reliable conductivity. The header includes an integrated mating and mounting flange, allowing secure screw connection to the PCB or panel mounting with DFK versions.
Pin dimensions are 2.4 x 2.5 mm with a recommended hole diameter of 3.6 mm. The overall length is 44.9 mm and height is 33.1 mm. This header is suitable for power distribution, PCB-to-PCB connections, and touch-proof PCB outputs when used with matching IPC 35 HC plugs.
The header has 2 positions.
The pitch is 15 mm.
The rated current is 125 A, with a UL nominal current of 115 A.
The rated voltage is 1000 V (III/2) and the UL nominal voltage is 600 V.
Through hole mounting.
Right angle, 90° orientation.
Green.
