| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

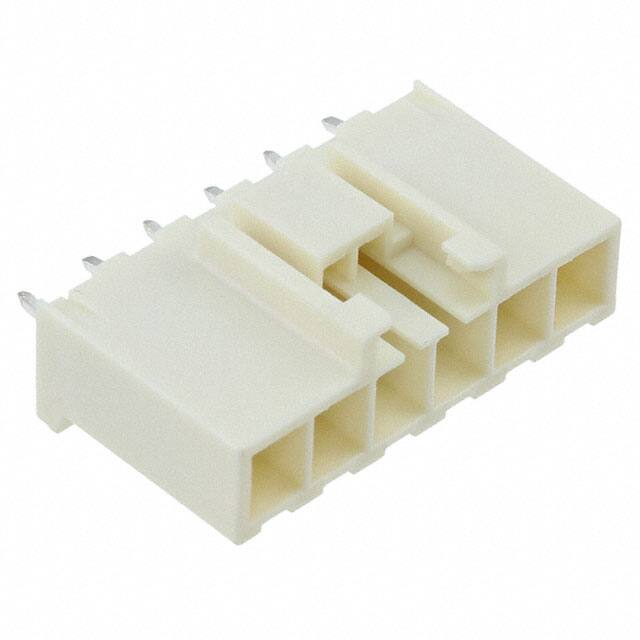

The TE Connectivity 178489-1 is a 6-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 3.96mm pitch and rectangular tab contacts made of brass with a tin finish. The connector is fully loaded with all 6 positions and uses a kinked pin, solder termination for through-hole mounting.
The header is shrouded with a 4-wall design and includes a locking ramp for secure mating. The insulation is made of polyamide (PA66/Nylon 6/6) in natural color, with a flammability rating of UL94 V-0. The operating temperature range is -30°C to 105°C.
This connector is suitable for power and signal interconnections where a reliable, polarized connection is required. The 3.96mm pitch is common in wire-to-board applications requiring moderate current capacity.
The pitch is 3.96mm (0.156 inches).
It has 6 positions in a single row, all loaded.
Through hole with kinked pin, solder termination.
-30°C to 105°C.
Polyamide (PA66/Nylon 6/6) with UL94 V-0 rating.
Yes, it is shrouded with a 4-wall design and has a locking ramp.
