| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,700 pcs
|
1700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

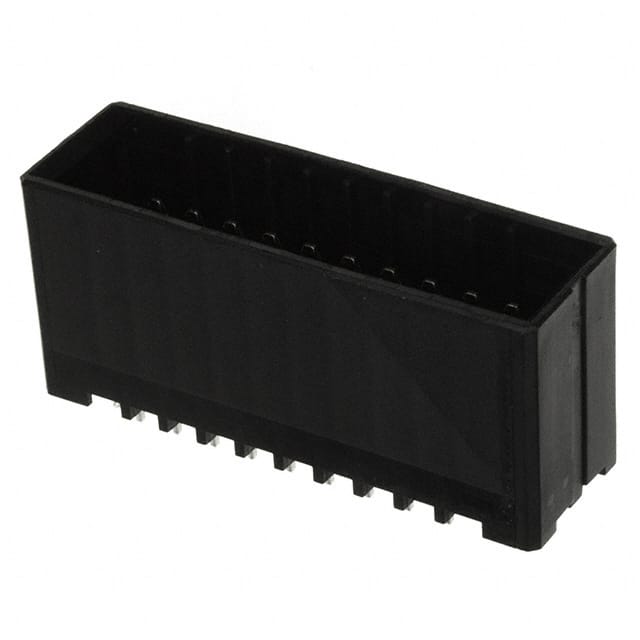

The TE Connectivity 178328-3 is a rectangular header connector designed for board-to-board or cable applications. It features 20 positions arranged in 2 rows with a pitch of 3.81mm.
The connector is through-hole mounted with solder termination. It has a shrouded 4-wall design and a detent lock fastening mechanism for secure mating. The insulation is made of thermoplastic, polyester, glass filled material in black color. The contact material is copper alloy with tin finish, and the contact shape is rectangular. The insulation height is 21.59mm. The voltage rating is 250V, and the operating temperature range is -55°C to 105°C. The material flammability rating is UL94 V-0.
The header includes a board lock feature for additional retention. It is suitable for use in various electronic equipment requiring reliable interconnection. The unloaded positions are all loaded, and the contact length is 3.81mm. The row spacing is 5.08mm (0.200").
20 positions.
3.81mm.
250V.
Through hole.
-55°C to 105°C.
Detent lock.
Thermoplastic, polyester, glass filled.
