| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
912 pcs
|
912 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

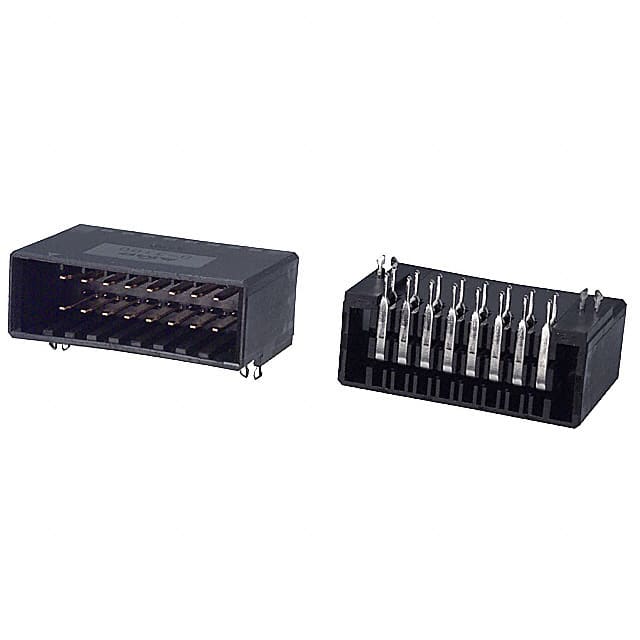

The TE Connectivity 178307-2 is a 16-position header designed for board-to-board or cable connections. It features a 3.81mm pitch and dual-row configuration with 5.08mm row spacing, enabling compact signal distribution. The connector is shrouded with four walls and includes a detent lock for secure mating.
Contact material is copper alloy with a tin finish and a thickness of 0.38µm. The header is rated for 250V and operates over a temperature range of -55°C to 105°C. The insulation is black thermoplastic polyester, glass filled, with a UL94 V-0 flammability rating. The mounting type is through hole right angle with solder termination, and an integrated board lock feature aids in PCB retention.
16 positions, all loaded.
3.81mm (0.150 inches).
250V.
Through hole, right angle with solder termination.
Yes, it is a shrouded 4-wall design with a detent lock fastening type.
-55°C to 105°C.
Tin, with a thickness of 15.0µin (0.38µm).
