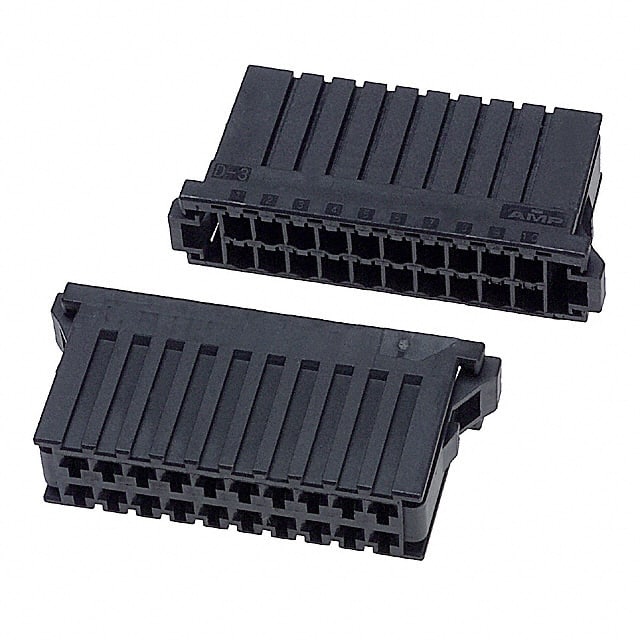

178289-8 TE Connectivity 178289-8 is a rectangular connector housing with 20 positions, 2 rows, 3.81mm pitch, and 5.08mm row spacing. It features a receptacle design with female socket contacts and crimp termination, operating from -55°C to 105°C.
Mfr Part #:

178289-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 178289-8 is a rectangular connector housing with 20 positions, 2 rows, 3.81mm pitch, and 5.08mm row spacing. It features a receptacle design with female socket contacts and crimp termination, operating from -55°C to 105°C.
✓ Total Stock: 7,205 pcs

178289-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
7,205 pcs
On Request
7205 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

178289-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
View Similar Products (0)

178289-8 Description

Short technical summary and product information.

The TE Connectivity 178289-8 is a rectangular connector housing designed for use with crimp contacts. This receptacle housing offers 20 positions arranged in 2 rows with a 3.81mm pitch and 5.08mm row spacing. The free hanging (in-line) mounting style allows for flexible installation in wire-to-wire or wire-to-board configurations. The housing is black and supports a wide operating temperature range of -55°C to 105°C, making it suitable for various industrial and automotive environments. Crimp termination ensures reliable and secure connections when paired with compatible female socket contacts.

178289-8 Quick Information

Product Type: Rectangular Connector Housing
Series: Dynamic D-3100D
Canonical Name: TE Connectivity 178289-8 Rectangular Connector Housing, Receptacle, 20 Positions, 3.81mm Pitch, Free Hanging, Crimp
Subcategory: Receptacle Housing

178289-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

178289-8 Features

  • 20-position, 2-row rectangular connector housing.
  • 3.81mm pitch with 5.08mm row spacing.
  • Free hanging (in-line) mounting style.
  • Crimp termination for female socket contacts.
  • Operating temperature range -55°C to 105°C.

178289-8 Applications

  • Ideal for wire-to-wire interconnections.
  • Used in industrial control systems.
  • Suitable for automotive harness applications.

178289-8 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the housing have?

The housing has 20 positions.

What is the pitch?

The pitch is 3.81mm (0.150 inches).

What is the mounting type?

The mounting type is Free Hanging (In-Line).

How many rows does the housing have?

The housing has 2 rows.

What is the row spacing?

The row spacing is 5.08mm (0.200 inches).

What type of contact termination is used?

The contact termination is Crimp.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.
