| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

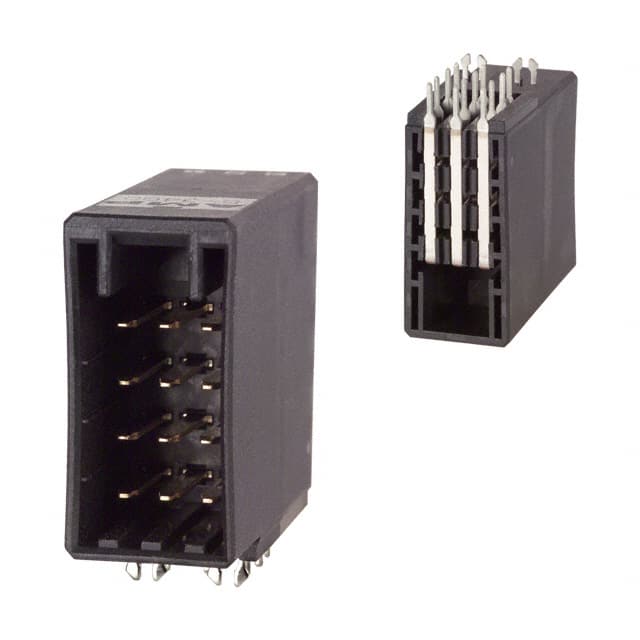

The TE Connectivity 178216-2 is a 12-position header designed for board-to-board or cable-to-board interconnect applications. It features a 3.81mm pitch and 5.08mm row spacing, with 4 rows of tin-plated copper alloy contacts. The header is mounted via through hole, right angle orientation and terminated by solder.
This shrouded 4-wall header includes a detent lock for secure mating and a board lock for retention on the PCB. The insulation is molded from black thermoplastic, polyester, glass filled material rated UL94 V-0. Operating temperature range is -55°C to 105°C, and the voltage rating is 250V.
The contact finish is tin with a thickness of 0.38µm. The header is RoHS and REACH compliant (unverified) and has an MSL of 1 (unlimited). No current rating is specified.
12 positions.
3.81mm.
250V.
Through hole, right angle.
4 rows.
-55°C to 105°C.
Tin with 0.38µm thickness.
