| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

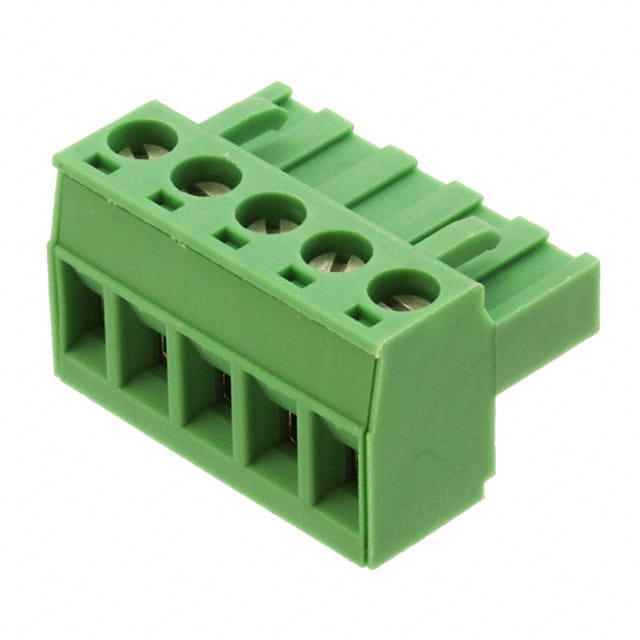

The Phoenix Contact 1781014 (MSTBT 2,5/ 5-ST-5,08) is a 5-position plug connector designed for printed-circuit board applications. It features a 5.08 mm pitch and uses a screw connection with a rising cage clamp for secure wire termination. The plug accepts solid or stranded conductors from 0.2 to 2.5 mm² (24-12 AWG) with a stripping length of 7 mm.
Electrical ratings include a nominal current of 12 A and a rated voltage of 320 V (III/2) or 630 V (II/2). The rated surge voltage is 4 kV. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0. The contact mating finish is tin.
The plug is free hanging (in-line) with a 180° wire entry and includes retention latches on the non-wire side. The screw thread is M3 with a tightening torque range of 0.5 to 0.6 Nm.
The 1781014 has 5 positions.
The pitch is 5.08 mm.
The nominal current is 12 A, with a maximum load current of 12 A (with 2.5 mm² conductor).
The rated voltage is 320 V (III/2) and 630 V (II/2). The UL Use Group D rating is 300 V.
The mounting type is Free Hanging (In-Line).
It accepts solid and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG).
The tightening torque is 0.5 Nm (min) to 0.6 Nm (max).
