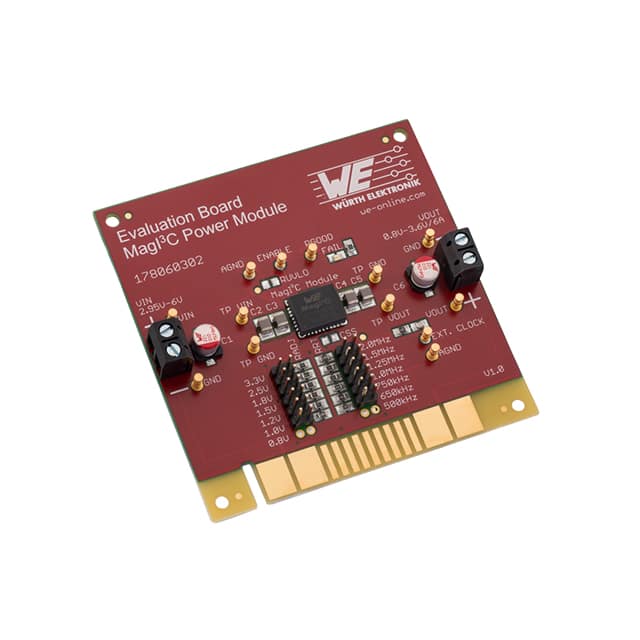

The Würth Elektronik 178060302 is a fully populated evaluation board designed for the MagI3C VDRM series step-down power module (part 171060302). This board allows engineers to evaluate the performance of the integrated DC/DC converter which includes a switching regulator with integrated MOSFETs, compensation, and a shielded inductor.
The module operates from a 2.95V to 6V input and provides a regulated output voltage adjustable from 0.8V to 3.6V, with a continuous output current of up to 6A and output power of 21.6W. Peak efficiency reaches up to 96%, and the output voltage ripple is typically 4mV. The switching frequency is adjustable from 0.5MHz to 2MHz.
The board is suitable for point-of-load applications in industrial, test and measurement, medical, and communication infrastructure designs. It includes protection features such as thermal shutdown, overcurrent, short circuit, overvoltage, and undervoltage lockout.
The input voltage range is 2.95V to 6V.
The board can deliver up to 6A output current.
The output voltage is adjustable from 0.8V to 3.6V.
Peak efficiency is up to 96%.
The junction temperature range is -40°C to +125°C; ambient up to 85°C.
The part is listed as RoHS3 compliant, but this is unverified.
