| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

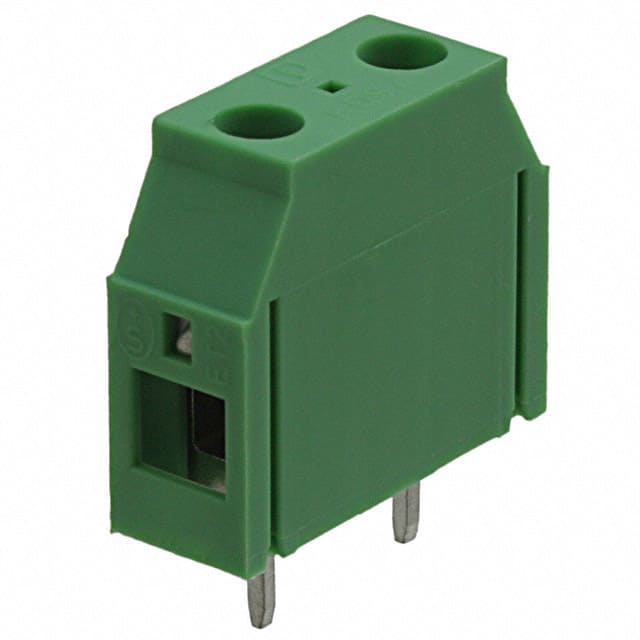

The Phoenix Contact 1780507 is a single-position wire-to-board terminal block designed for through-hole mounting. It accepts wire gauges from 10 to 30 AWG and is rated for 30A continuous current at 300V. The screw rising cage clamp termination provides a secure and reliable connection. The green housing includes side interlocking features for multi-position assembly, and the feed-through design allows daisy-chaining. This component is suitable for power distribution and control applications where a single conductor per level is required. The horizontal mating orientation with the board simplifies wiring in space-constrained designs.
1 position, single level.
30 A.
300 V.
Through hole.
10-30 AWG.
Screw - Rising Cage Clamp.
Green.
