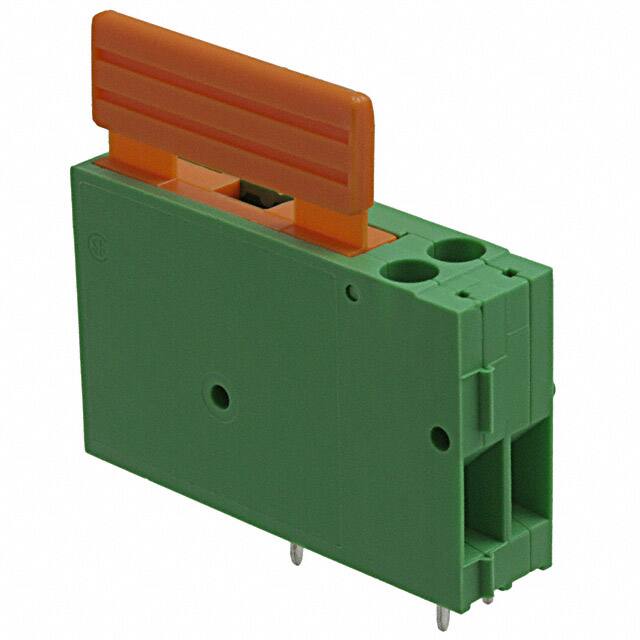

1780112 Phoenix Contact 1780112 is a 1-position wire-to-board terminal block with screw rising cage clamp termination. It is rated for 15A at 300V and accepts 12-28 AWG wire.
Mfr Part #:

1780112

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1780112 is a 1-position wire-to-board terminal block with screw rising cage clamp termination. It is rated for 15A at 300V and accepts 12-28 AWG wire.
✓ Total Stock: 28 pcs

1780112 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1780112 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Mating Orientation
Mounting Type
Number of Levels
Positions Per Level
Tape & Reel
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1780112 Description

Short technical summary and product information.

This Phoenix Contact terminal block is a single-position wire-to-board connector with a screw-rising cage clamp termination mechanism. It is designed for through-hole mounting on a printed circuit board, with a horizontal mating orientation (side entry). The block accepts wire sizes from 12 to 28 AWG and is rated for 15A continuous current at 300V.



The green housing provides visual identification for power or signal connections. The rising cage clamp ensures a secure gas-tight connection for reliable operation in industrial environments.



This component is commonly used in power distribution, control systems, and automation equipment where a single wire termination point is needed.

1780112 Quick Information

Product Type: Wire-to-Board Terminal Block
Series: KDS 3-SI
Canonical Name: Phoenix Contact 1780112 1 Position Wire-to-Board Terminal Block
Subcategory: Wire-to-Board

1780112 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1780112 Features

  • 1 position per level for single wire connection.
  • Rated for 15A continuous current at 300V.
  • Accepts 12 to 28 AWG wire sizes.
  • Rising cage clamp screw termination for secure connections.
  • Through-hole mounting with horizontal mating orientation.

1780112 Applications

  • Used in power supply wiring on PCBs.
  • Suitable for industrial control panels.
  • Common in automation equipment terminal blocks.
  • Ideal for single-wire connections in distribution blocks.

1780112 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

1 position per level, with 1 level.

What is the current rating?

15 A.

What is the voltage rating?

300 V.

What wire gauge range is supported?

12-28 AWG.

What is the mounting type?

Through hole.

What termination style does it use?

Screw - Rising Cage Clamp.

What color is the housing?

Green.
