| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

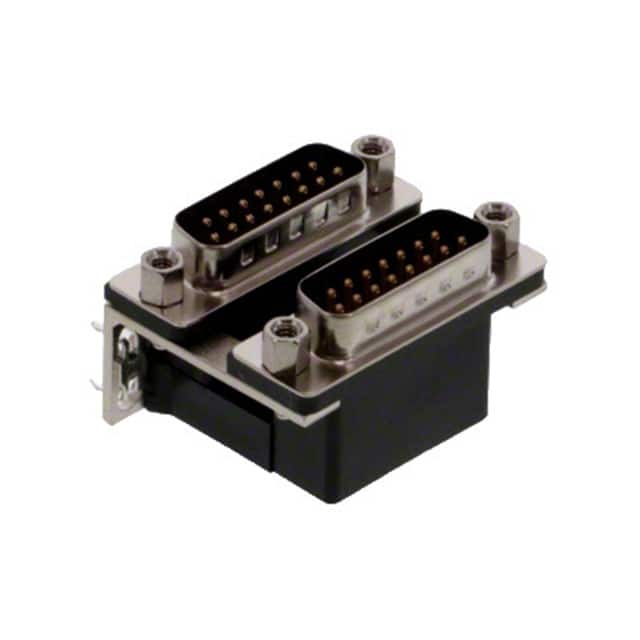

The NorComp Inc. 178-015-613R571 is a stacked D-Sub connector assembly featuring two 15-position plugs with male pins arranged in 2 rows each. This configuration offers 30 total signal contacts in a compact dual-port layout ideal for space-constrained applications.
Electrical characteristics include a 5 A current rating per contact with gold flash contact finish for reliable signal integrity. The connector is shielded and includes board locks and grounding indents for enhanced mechanical stability and EMI protection.
Mechanical mounting is achieved through a combination of panel mount and through hole right angle solder termination. The shell is constructed from steel with nickel plating, and the insulator material carries a UL94 V-0 flammability rating. The backset spacing is 8.08 mm, and the flange features a mating side female screwlock (4-40) for secure mating.
5 A per contact.
Two rows of 15 positions each, for a total of 30 positions (15+15).
Panel Mount, Through Hole, Right Angle.
Gold flash (thin gold plating).
Yes, it is shielded with a steel nickel-plated shell.
