| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

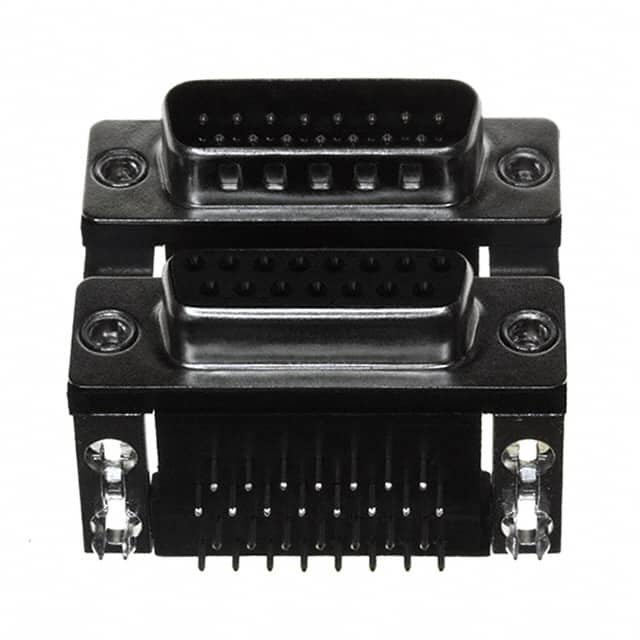

This D-Sub connector from NorComp Inc. is a stacked configuration combining a 15-position plug (male pins) and a 15-position receptacle (female sockets) in a single package. Both connectors use the DA-15 shell size and feature two rows of contacts. The right angle orientation and through hole termination make it suitable for PCB mounting where space is constrained. The connector is designed for panel mount applications with a flange feature using 4-40 threaded inserts.
The connector is shielded with a nickel-plated steel shell for EMI protection. It includes board locks and grounding indents for secure mechanical attachment and grounding. Contacts are gold flash plated for reliable signal transmission. The insulator material meets UL94 V-0 flammability rating. Each contact is rated for 5A current, suitable for signal-level applications.
The backset spacing of 0.318 inches (8.08 mm) provides clearance for PCB mounting. The connector uses solder termination for permanent connections. The stacked design saves board space by integrating two connectors in one footprint.
| Qty | Low | High |
|---|---|---|
| 245+ | $7.42 | $7.42 |
| 1,015+ | $7.20 | $7.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This stacked D-Sub connector has two 15-position connectors, one plug and one receptacle, each with 15 signal contacts.
Each contact is rated for 5A.
The connector is designed for panel mount with through hole, right angle solder termination.
The shell is steel with nickel plating.
Yes, it features a shielded design with grounding indents.
Contacts have gold flash plating.
The insulator material is rated UL94 V-0.
