| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

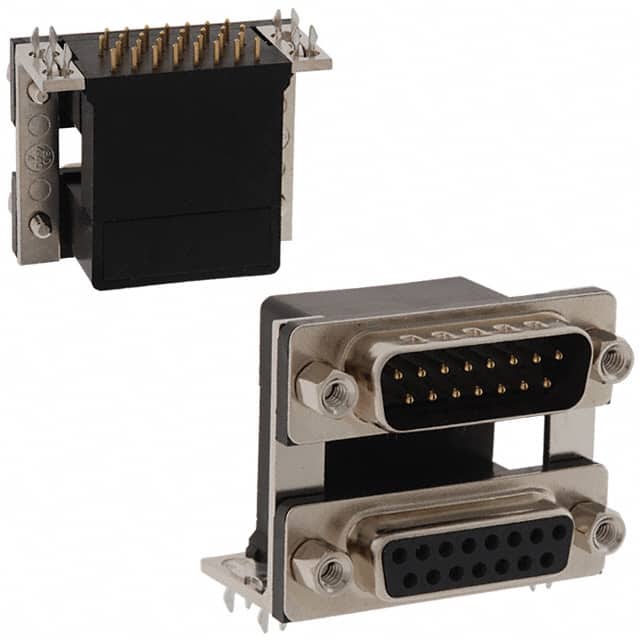

This is a D-Sub stacked connector assembly from NorComp Inc., featuring both a plug (male pins) and receptacle (female sockets) in a single unit, each with 15 positions arranged in 2 rows. The connector style is D-Sub - Stacked, with shell size 2 (DA, A) for both sections.
Electrical rating: 5A current. Contacts are signal type with gold flash finish. The shell is steel with nickel plating, and the flange features mating side female screwlocks (4-40). Additional features include board lock, grounding indents, and shielding.
Mounting is panel mount with through hole, right angle solder termination. Backset spacing is 0.318" (8.08mm). The insulator material has a flammability rating of UL94 V-0.
15 positions for both plug and receptacle.
5A.
Panel mount, through hole, right angle.
Gold flash.
Steel, nickel plated.
Yes, shielded with grounding indents.
UL94 V-0.
