| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

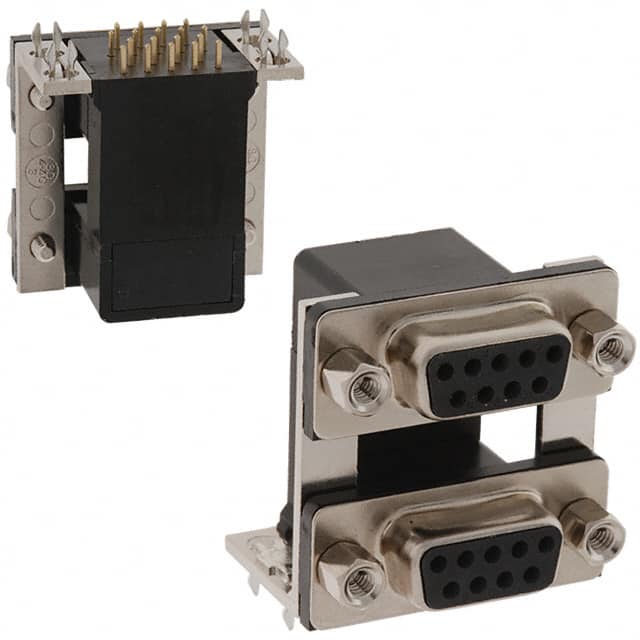

The 178-009-513R571 is a D-Sub stacked receptacle connector manufactured by NorComp Inc. It features two DE-9 (E) sized connectors stacked vertically, each with 9 female socket contacts in a 2-row configuration. The connector is designed for panel mount with through hole right angle termination, making it suitable for applications where space is limited and a right-angle connection is required.
Electrical characteristics include a current rating of 5 A per contact, signal contact type, and gold flash contact finish for reliable low-level signal transmission. The shell is made of steel with nickel plating, providing EMI/RFI shielding. The connector also includes a board lock feature for secure attachment to the PCB and a mating side female screwlock (4-40) flange feature for secure mating with the corresponding plug.
The insulator material has a flammability rating of UL94 V-0, ensuring fire safety. The backset spacing is 0.318 inches (8.08 mm). This connector is suitable for various industrial, commercial, and data communication applications requiring a compact dual D-Sub interface.
It has two stacks of 9 positions each, for a total of 18 positions.
5 A per contact.
Panel mount with through hole right angle termination.
Gold flash plating.
Steel with nickel plating.
Yes, it includes board lock and is shielded.
Mating side female screwlock (4-40).
