| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
132 pcs
|
132 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Termination | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Working Voltage |

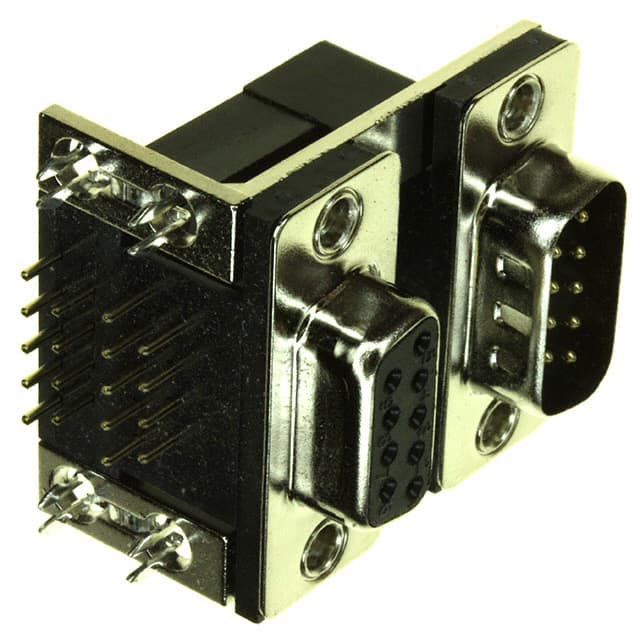

The 178-009-413R491 is a D-Sub stacked connector from NorComp Inc., featuring a male over female configuration with 9 positions per connector (DE-9 shell size). The connector uses a right angle solder termination and supports panel mount or through-hole mounting. It includes board locks, grounding indents, and a shielded steel shell with nickel plating for EMI protection.
Electrical ratings include a current rating of 5 A per contact, working voltage of 250 V, and dielectric withstanding voltage of 1000 VAC. The insulator material is PA9T with a UL94 V-0 flammability rating, supporting a maximum process temperature of 260°C. The operating temperature ranges from -55°C to +105°C.
Contacts are brass with gold flash plating overall and 30 µin gold in the mating area; solder tails are tin. The flange hardware uses 4-40 threaded inserts. The backset spacing measures 0.318" (8.08 mm).
It has 9 positions on the male plug and 9 positions on the female receptacle (9,9).
The current rating is 5 A per contact.
It supports panel mount and through-hole mounting, with right angle solder termination.
The operating temperature range is -55°C to +105°C.
Contacts are brass with gold flash overall. The mating area has 30 µin gold, and the solder tails are tin plated.
Yes, it features a shielded design with a nickel plated steel shell.
