| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77 pcs
|
77 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

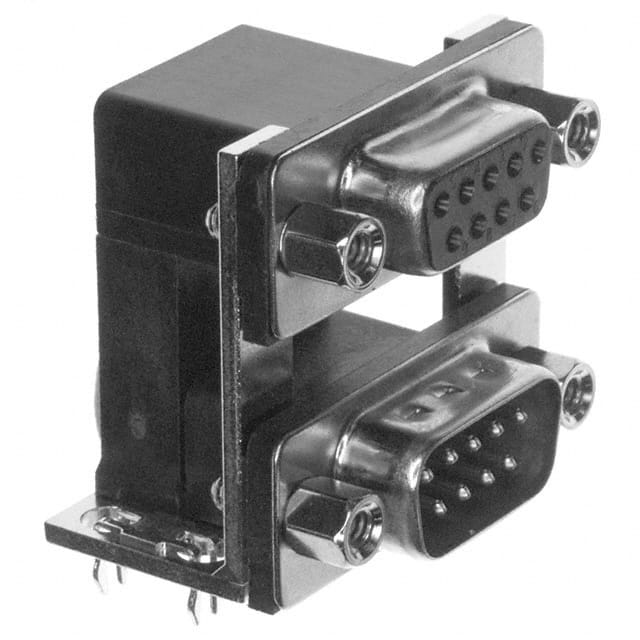

The 178-009-313R571 is a D-Sub - Stacked connector assembly from NorComp Inc. It combines a 9-position plug (male pins) and a 9-position receptacle (female sockets) in a single right-angle, panel-mount package. Each connector uses two rows of signal contacts with gold flash finish for reliable low-level signal connections. The shell is steel with nickel plating, and the flange features mating side female screwlocks (4-40) for secure panel mounting. The connector includes board locks and grounding indents for enhanced mechanical retention and EMI shielding. The insulator material is rated UL94 V-0 for flammability. With a current rating of 5 A per contact, this stacked D-Sub is suitable for space-constrained applications requiring both male and female interfaces in one assembly. Termination is via solder to through-hole PCB pads.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
| 10+ | $8.23 | $8.23 |
| 25+ | $7.71 | $7.71 |
| 45+ | $7.34 | $7.34 |
| 90+ | $6.99 | $6.99 |
| 270+ | $6.51 | $6.51 |
| 540+ | $6.20 | $6.20 |
| 1,035+ | $5.91 | $5.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
D-Sub - Stacked.
9 positions on the plug and 9 positions on the receptacle.
5 A.
Panel Mount, Through Hole, Right Angle.
Solder.
Gold flash.
UL94 V-0.
