177983-5 TE Connectivity 177983-5 is a 120-position receptacle with outer shroud contacts, 0.8mm pitch, surface mount, gold finish, and board guide feature. Supports stacking heights from 5mm to 8mm.
Mfr Part #:

177983-5

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 177983-5 is a 120-position receptacle with outer shroud contacts, 0.8mm pitch, surface mount, gold finish, and board guide feature. Supports stacking heights from 5mm to 8mm.
✓ Total Stock: 102 pcs

177983-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request 2005 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

177983-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
View Similar Products (0)

177983-5 Description

Short technical summary and product information.

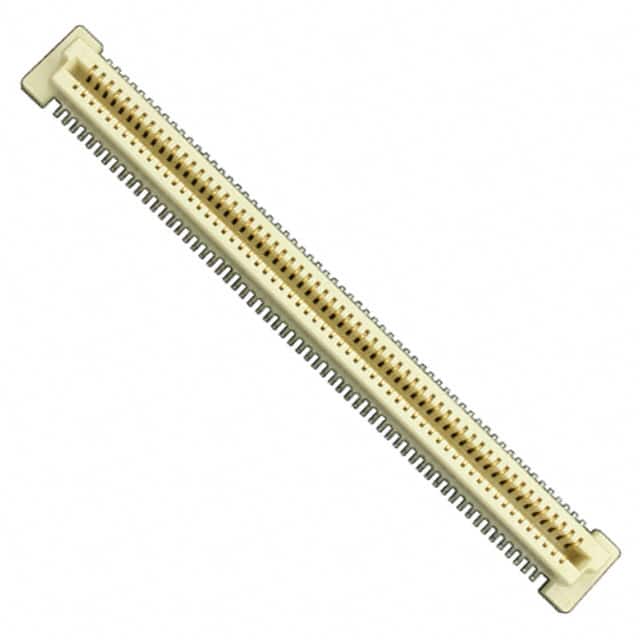

The TE Connectivity 177983-5 is a high-density board-to-board receptacle connector featuring 120 positions arranged in two rows with a 0.8mm pitch. It utilizes a surface mount termination for efficient PCB assembly. The connector is finished with gold contacts (0.203µm thickness) for reliable signal integrity and corrosion resistance. Designed for mezzanine stacking applications, it supports mated stacking heights of 5mm, 6mm, 7mm, and 8mm. An integrated board guide aids in alignment during mating. This connector is RoHS compliant, MSL 1 unlimited, and REACH unaffected. It is suitable for compact electronic assemblies requiring high pin count and low profile.

177983-5 Quick Information

Product Type: Board-to-Board Connector
Canonical Name: Receptacle, Outer Shroud Contacts, 120 Position, 0.8mm Pitch, Surface Mount, Gold
Subcategory: Mezzanine Connector

177983-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

177983-5 Features

  • 120 positions in a 2-row configuration.
  • 0.8mm pitch for high-density routing.
  • Surface mount termination for automated assembly.
  • Gold contact finish for reliable connections.
  • Supports 5mm to 8mm stacking heights.

177983-5 Applications

  • Mezzanine board-to-board interconnects in compact electronics.
  • High-density signal routing in servers and switches.
  • Industrial control modules requiring reliable connections.
  • Portable devices with space constraints.

177983-5 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 177983-5 connector have?

It has 120 positions arranged in two rows.

What is the pitch of this connector?

The pitch is 0.80mm.

What mounting type is used?

Surface mount (SMT).

What is the contact finish?

Gold with a thickness of 0.203µm (8µin).

What are the supported stacking heights?

5mm, 6mm, 7mm, and 8mm.

Does this connector have any alignment features?

Yes, it includes a board guide feature.
