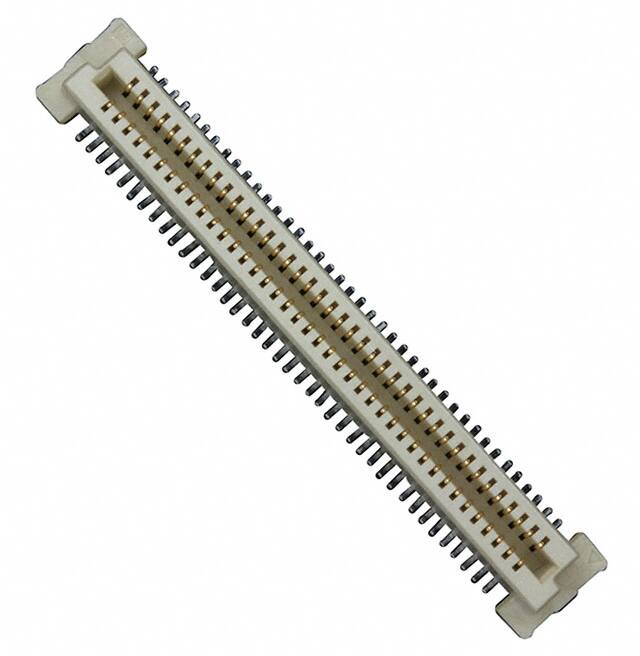

177983-3 80 position board-to-board receptacle connector from TE Connectivity with 0.80mm pitch, gold contact finish, and surface mount termination.
Mfr Part #:

177983-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
80 position board-to-board receptacle connector from TE Connectivity with 0.80mm pitch, gold contact finish, and surface mount termination.
✓ Total Stock: 65 pcs

177983-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
65 pcs
On Request
65 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

177983-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
View Similar Products (0)

177983-3 Description

Short technical summary and product information.

The TE Connectivity 177983-3 is a 80 position receptacle connector designed for board-to-board mezzanine stacking applications. It features 2 rows of contacts with a 0.80mm pitch, enabling high-density interconnections. The connector is surface mount compatible and has a height above board of 3.75mm, supporting mated stacking heights of 5mm, 6mm, 7mm, and 8mm. Contacts are finished with 8.00µin (0.203µm) gold for reliable conductivity. A built-in board guide aids in alignment during assembly. The connector is classified as RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

177983-3 Quick Information

Product Type: Board-to-Board Connector Receptacle
Canonical Name: TE Connectivity 177983-3, 80 Position Receptacle, Outer Shroud Contacts, Surface Mount, 0.8mm Pitch
Subcategory: Receptacle, Outer Shroud Contacts

177983-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

177983-3 Features

  • 80 position receptacle connector with 0.80mm pitch
  • Gold plated contacts for reliable connectivity
  • Surface mount design for automated assembly
  • Supports mated stacking heights from 5mm to 8mm
  • Includes board guide for alignment

177983-3 Applications

  • Ideal for mezzanine board stacking applications
  • Used in compact electronic assemblies
  • Suitable for high-density interconnects

177983-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 177983-3 have?

80 positions

What is the pitch of the connector?

0.80mm (0.031")

What is the mounting type?

Surface mount

How many rows of contacts?

2 rows

What is the contact finish?

Gold, 8.00µin (0.203µm) thickness

What are the supported mated stacking heights?

5mm, 6mm, 7mm, 8mm

Does the connector include any special features?

Yes, a board guide is included
