| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Type | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Wire Gauge or Range |

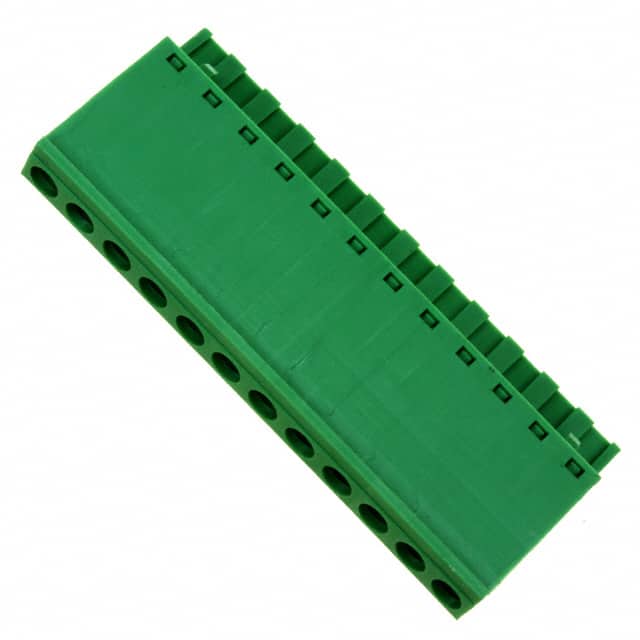

The Phoenix Contact 1779518 (FRONT-MSTB 2,5/12-ST) is a 12-position plug component designed for use in terminal block systems. It features a 5mm pitch and uses a screw connection with a pressure clip for secure wire termination. The plug accepts solid conductors from 0.34 mm² to 2.5 mm² and stranded conductors from 0.2 mm² to 2.5 mm², corresponding to 24 AWG to 12 AWG.
Electrical ratings include a nominal current of 12 A and nominal voltage of 250 V, with rated surge voltage of 4 kV across all overvoltage categories. The insulating material is polyamide (PA) with flammability class UL 94 V-0. The plug is free hanging (in-line) with a 180° wire entry and includes retention latches on the non-wire side.
Mechanical details include M2.5 screw threads with a tightening torque range of 0.5 Nm to 0.6 Nm and a stripping length of 10 mm. The overall length (dimension a) is 55 mm. The product is RoHS3 compliant and weighs approximately 0.03594 kg per piece, packaged in quantities of 50.
The pitch is 5 mm.
It has 12 positions.
The nominal current is 12 A, with a maximum load current of 12 A.
The nominal voltage is 250 V. Rated voltage is 320 V for overvoltage category III/2 and 630 V for category II/2.
It is a free hanging (in-line) plug.
It accepts solid conductors from 0.34 mm² to 2.5 mm² and stranded conductors from 0.2 mm² to 2.5 mm², equivalent to 24 AWG to 12 AWG.
The insulating material is polyamide (PA) with flammability class UL 94 V-0.
