| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Industrial Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

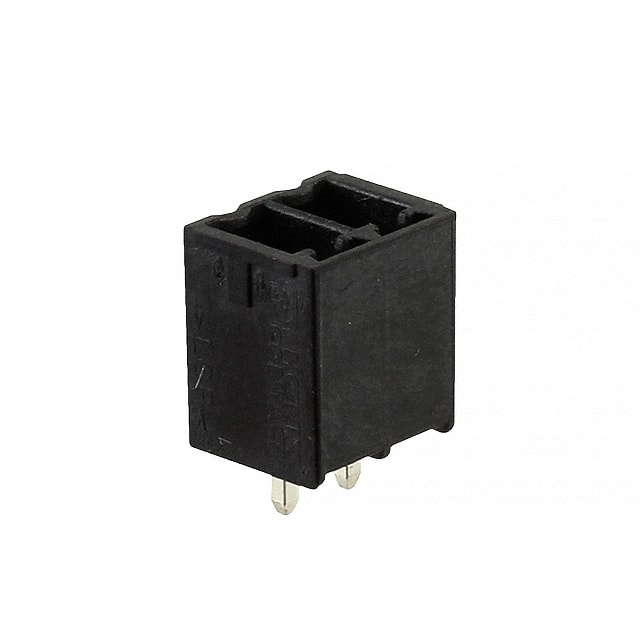

The Phoenix Contact 1779365 (MCV 1,5/ 2-G-3,5 P26 THR) is a 2-position shrouded header designed for use with terminal block connectors. It features male pins arranged in a single level with a pitch of 3.5mm. The header is oriented vertically for PCB mounting.
Electrical ratings include a nominal current of 8A and a nominal voltage of 160V (with a voltage rating of 300V). The contact mating finish is tin. The header is designed for through hole soldering termination.
The header is part of the MCV series from Phoenix Contact, offering a compact solution for wire-to-board connections. The shrouded design provides protection and alignment for mating connectors. The vertical orientation allows for multi-row arrangements on the PCB.
The product is packaged in cardboard. It is RoHS3 compliant and has an MSL of 1 (unlimited). Note that compliance data is unverified and should be confirmed with the manufacturer.
2 positions.
3.5mm.
8A nominal current.
300V (nominal 160V).
Through hole.
Solder.
Black.
