| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

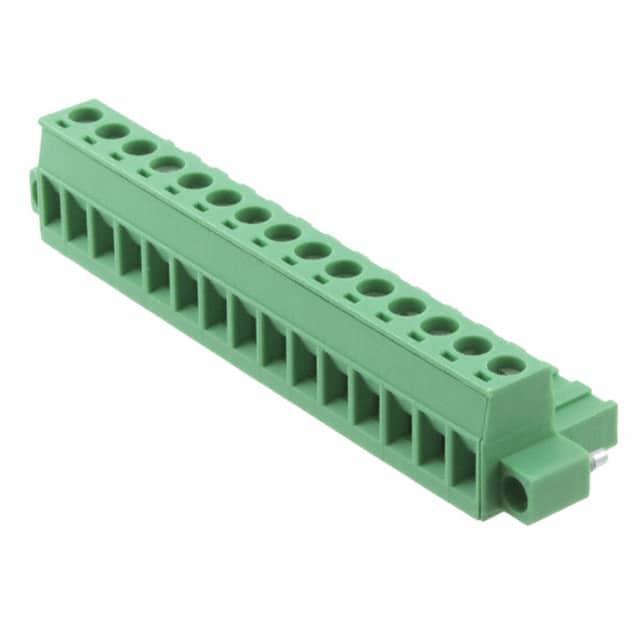

The Phoenix Contact 1778111 is a 15-position plug component from the MSTB 2,5/..-STF series. It features a 5.08mm pitch and uses a screw connection with rising cage clamp termination for secure wire termination. The plug accepts conductors from 0.2 to 2.5 mm² (24 to 12 AWG) and has a stripping length of 7 mm.
Electrically, the component is rated for a nominal current of 12 A and a nominal voltage of 250 V (IEC). It can handle a rated voltage of 320 V (III/2) and 630 V (II/2) with a rated surge voltage of 4 kV. For UL/CUL applications, the nominal current is 15 A at 300 V (Use Group B and D).
The plug is designed for free hanging (in-line) mounting with a 180° wire entry. It is made with a green PA insulating material rated UL 94 V0. The contact mating finish is tin. A mating flange feature is included for secure connection to the header.
The 1778111 has 15 positions.
The pitch is 5.08 mm.
The nominal current (IEC) is 12 A. The UL/CUL rating is 15 A.
The rated voltage (III/2) is 320 V, (II/2) is 630 V, and nominal voltage UN is 250 V. UL/CUL rating is 300 V.
It uses free hanging (in-line) mounting.
It accepts conductors from 0.2 to 2.5 mm², which corresponds to 24 to 12 AWG.
The insulating material is PA with a flammability class of UL 94 V0.
