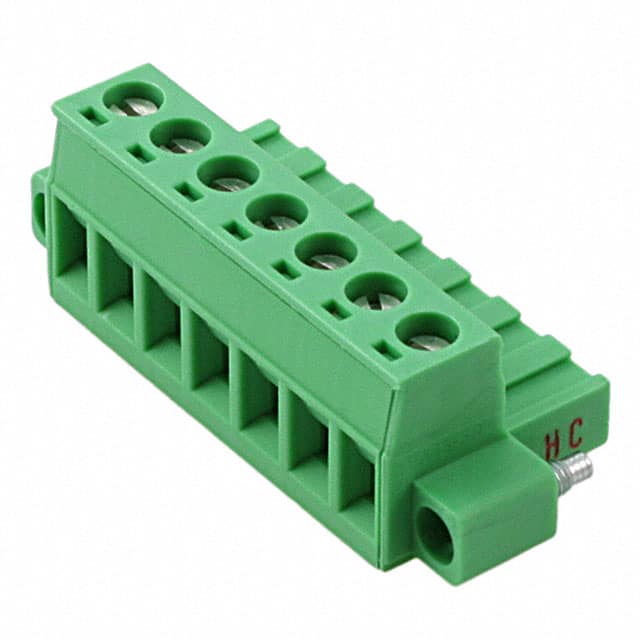

1778030 Phoenix Contact 1778030 is a 7-position terminal block plug with a 5.08mm pitch. It features female sockets, a free hanging mount, and screw rising cage clamp termination for 0.2-2.5mm² wire.
Mfr Part #:

1778030

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1778030 is a 7-position terminal block plug with a 5.08mm pitch. It features female sockets, a free hanging mount, and screw rising cage clamp termination for 0.2-2.5mm² wire.
✓ Total Stock: 16 pcs

1778030 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1778030 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge
Wire Gauge or Range
View Similar Products (0)

1778030 Description

Short technical summary and product information.

The Phoenix Contact 1778030 is a terminal block plug designed for use with headers, plugs, and sockets. It has 7 positions arranged in a single level, each with a pitch of 5.08mm (0.200 inches). The plug accepts wire gauges from 0.2 to 2.5 mm² and is rated for 15A at 300V.



Termination is via a screw - rising cage clamp mechanism, ensuring secure wire connections. The plug is designed for free hanging (in-line) mounting, offering flexibility in wiring applications where a fixed panel mount is not required. The contact mating finish is tin, and the green housing includes a mating flange for secure connection to a matching header.



This component is suitable for a variety of industrial control, power distribution, and signal interconnection applications. The 180° wire entry facilitates straightforward wiring in confined spaces.

1778030 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1778030 Terminal Block Plug, Female Sockets, 7 Position, 5.08mm Pitch, Free Hanging, Screw Rising Cage Clamp

1778030 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1778030 Features

  • 7 position plug with 5.08mm pitch.
  • Screw rising cage clamp termination.
  • Rated for 15A at 300V.
  • Free hanging in-line mounting style.
  • Includes mating flange for secure connection.

1778030 Applications

  • Used in power distribution and control systems.
  • Suitable for industrial automation wiring.
  • Ideal for terminal block interconnections.
  • Applicable in building technology installations.

1778030 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1778030 have?

The Phoenix Contact 1778030 has 7 positions arranged in 1 level.

What is the pitch of the 1778030 terminal block plug?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

The plug is rated for 15A and 300V.

What is the mounting type for this part?

The mounting type is free hanging (in-line).

What wire gauge does it accept?

It accepts wire from 0.2 to 2.5 mm².

What termination style does the 1778030 use?

It uses screw - rising cage clamp termination.

Is the Phoenix Contact 1778030 RoHS compliant?

It is listed as RoHS3 compliant, but this is unverified.
