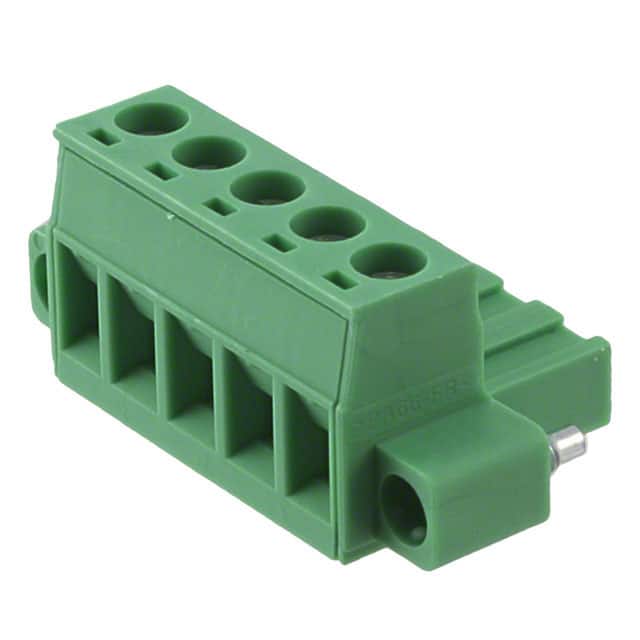

1778014 Phoenix Contact 1778014 is a 5-position terminal block plug with 5.08mm pitch, rated 300V and 15A, featuring screw rising cage clamp termination and free hanging mounting.
Mfr Part #:

1778014

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1778014 is a 5-position terminal block plug with 5.08mm pitch, rated 300V and 15A, featuring screw rising cage clamp termination and free hanging mounting.
✓ Total Stock: 7 pcs

1778014 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1778014 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1778014 Description

Short technical summary and product information.

The Phoenix Contact 1778014 is a 5-position terminal block plug designed for reliable wire-to-board connections. It features a 5.08mm pitch and accepts wire gauges from 0.2 to 2.5mm². The plug uses a screw rising cage clamp termination style, ensuring secure and vibration-resistant connections.



Rated for 300V and 15A, this plug is suitable for a variety of industrial control and power distribution applications. The female socket contacts have a tin mating finish for good conductivity and corrosion resistance. The plug body is green and features a mating flange for secure locking with the header.



The free hanging (in-line) mounting type allows for flexible wiring harness assembly. The 180° plug wire entry simplifies routing in tight spaces. This component is RoHS3 compliant and has an MSL of 1 (unlimited).

1778014 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1778014 - 5 Position 5.08mm Pitch Plug, Female Sockets Terminal Block
Subcategory: Headers, Plugs and Sockets

1778014 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1778014 Features

  • 5 positions with 5.08mm pitch spacing.
  • Rated for 300V and 15A operation.
  • Screw rising cage clamp termination.
  • Free hanging in-line mounting style.
  • Mating flange for secure connection.

1778014 Applications

  • Industrial control panel wiring applications.
  • Power distribution and signal connections.
  • Automation and machinery interconnect systems.
  • Building automation and HVAC equipment.

1778014 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1778014 have?

It has 5 positions.

What is the pitch of this terminal block plug?

The pitch is 5.08mm (0.200 inches).

What is the voltage and current rating?

It is rated for 300V and 15A.

What mounting type does this plug use?

It uses free hanging (in-line) mounting.

What termination style is used?

Screw - Rising Cage Clamp termination.
