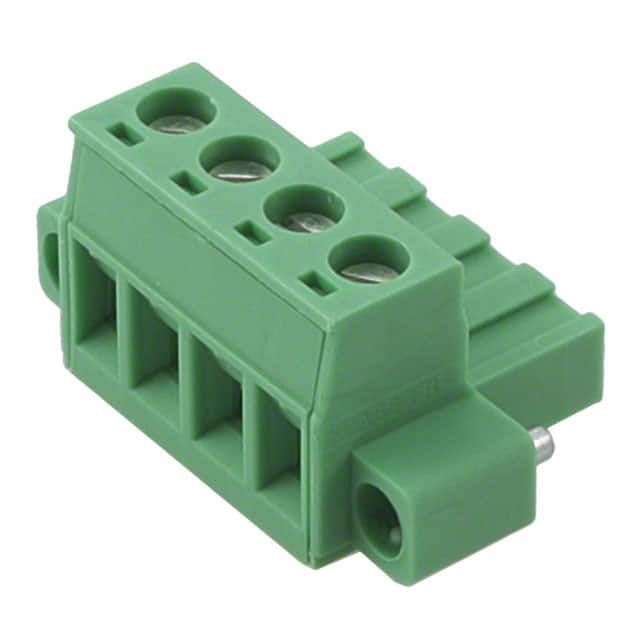

1778001 Phoenix Contact 1778001 is a 4-position terminal block plug with female sockets, 5.08mm pitch, and screw rising cage clamp termination for free hanging mounting.
Mfr Part #:

1778001

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1778001 is a 4-position terminal block plug with female sockets, 5.08mm pitch, and screw rising cage clamp termination for free hanging mounting.
✓ Total Stock: 430 pcs

1778001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
430 pcs
On Request
430 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1778001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1778001 Description

Short technical summary and product information.

The Phoenix Contact 1778001 is a 4-position terminal block plug designed for reliable wire-to-board connections. It features female sockets and a 5.08mm pitch, making it suitable for a variety of industrial and commercial applications.



The plug uses a screw - rising cage clamp termination style, accommodating wire sizes from 0.2 to 2.5 mm². It is rated for 300V and 15A, with a 180° plug wire entry for straightforward wiring. The green housing includes a mating flange for secure connection to matching headers.



This component is designed for free hanging (in-line) mounting, offering flexibility in panel or cable assembly. The contact mating finish is tin, ensuring good conductivity and corrosion resistance.

1778001 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1778001 Terminal Block Plug, Female Sockets, 4 Position, 5.08mm Pitch, Screw - Rising Cage Clamp, Free Hanging
Subcategory: Headers, Plugs and Sockets

1778001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1778001 Features

  • 4 position female socket plug.
  • 5.08mm pitch for compact wiring.
  • Screw rising cage clamp termination.
  • Rated for 300V and 15A.
  • Free hanging in-line mounting style.

1778001 Applications

  • Used in industrial control panel wiring.
  • Ideal for power distribution blocks.
  • Suitable for sensor and actuator connections.
  • Applied in building automation systems.
  • Used in machinery and equipment interconnects.

1778001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1778001 terminal block plug have?

It has 4 positions.

What is the pitch of the Phoenix Contact 1778001?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the 1778001?

The current rating is 15 A.

What is the voltage rating of the 1778001?

The voltage rating is 300 V.

What mounting type does the 1778001 use?

It uses free hanging (in-line) mounting.

What termination style does the 1778001 have?

It uses screw - rising cage clamp termination.

What wire gauge range is compatible with the 1778001?

It accepts wire sizes from 0.2 to 2.5 mm².
