| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Country of Origin | |
| Current | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Wire Gauge or Range |

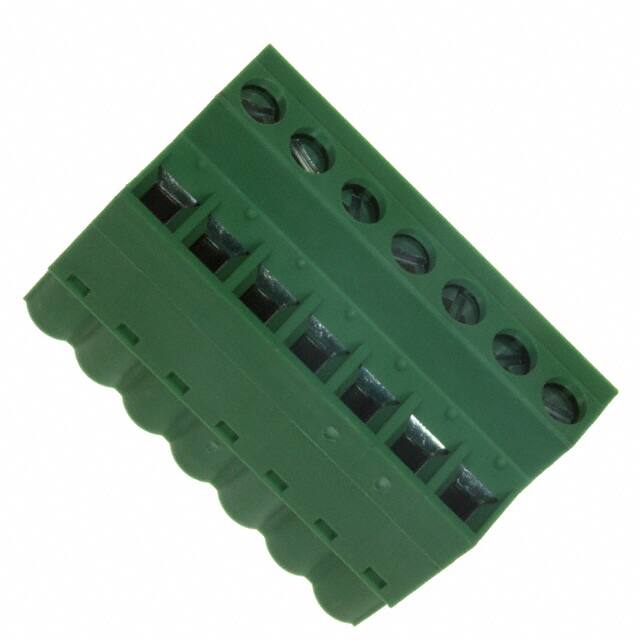

The Phoenix Contact 1777332 is a 7-position terminal block plug from the FRONT-MSTB 2,5/..-ST series. It uses a screw connection with pressure clip termination and is designed for free hanging (in-line) mounting. The plug has a 5.08mm pitch and accepts wire sizes from 0.2 to 2.5 mm² (24-12 AWG). The nominal current rating is 12 A, with a maximum load current of 12 A, and rated voltage is 320 V (III/2) or 630 V (II/2). The contact mating finish is tin, and the insulating material is PA with a flammability rating of UL 94 V-0. The plug features retention latches on the non-wire side. It is suitable for use in industrial control and power distribution applications where reliable screw connection is required. The weight per piece is 20.41 g, and the country of origin is Germany.
7 positions.
5.08 mm (0.200 inches).
12 A nominal, 12 A maximum load current.
320 V for rated voltage (III/2) and 630 V for rated voltage (II/2).
Free hanging (in-line).
24-12 AWG (0.2-2.5 mm² for stranded, 0.34-2.5 mm² for solid).
Screw - Pressure Clip.
