| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Features | |
| Height | |
| Housing Material | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge or Range |

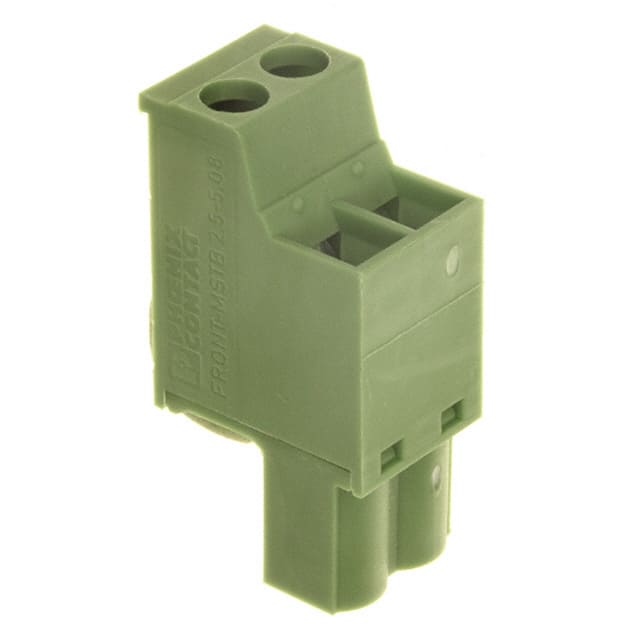

The Phoenix Contact 1777280 is a PCB plug-in connector from the FRONT-MSTB 2,5/..-ST series. It is a 2-position plug with female sockets designed for a 5.08 mm pitch. This connector supports wire gauges from 0.2 to 2.5 mm² and is rated for a current of 12 A (IEC) and a voltage of 320 V (III/2), making it suitable for a wide range of industrial and commercial applications.
The plug utilizes a screw connection with a pressure clip termination style, ensuring a reliable and secure wire connection. The wire entry is 180°, simplifying wiring in tight spaces. The housing is made of green PA (polyamide) with a UL 94 V0 flammability rating, providing good mechanical and thermal resistance. The contact surface is tin-plated, and the operating temperature reaches up to 125 °C.
The connector features retention latches on the non-wire side for secure mating. It is designed for free hanging (in-line) mounting and comes packaged in a cardboard box with a standard quantity of 100 pieces. The series is part of the COMBICON MSTB 2,5 connector system, and the datasheet indicates compliance with WEEE and RoHS, with whisker-free performance per IEC 60068-2-82.
It has 2 positions.
The pitch is 5.08 mm.
The rated current (IN) is 12 A per the datasheet. Note: the existing database lists 15 A, but the datasheet value should be verified.
The rated voltage (UN) is 320 V (III/2) per the datasheet. The existing database lists 300 V. The surge voltage rating is 4 kV.
It is free hanging (in-line) mounting, not for PCB mounting.
